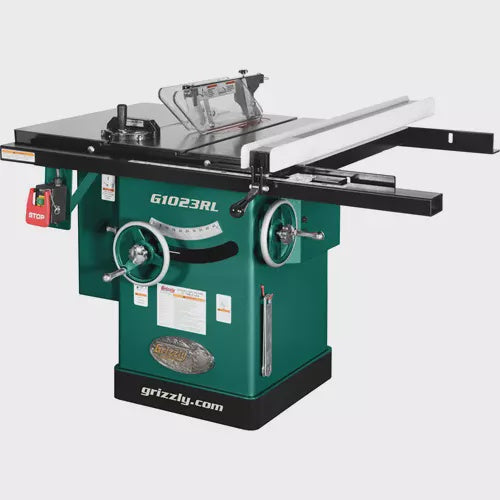

Grizzly G1023RL 10" 3 HP 240V Cabinet Table Saw

SPECIFICATIONS:

• Motor: 3 HP, 240V, single-phase, 14A
• Rip capacity: 32" right, 14" left of blade
• Maximum depth of cut @ 90°: 3"
• Maximum depth of cut @ 45°: 2-1/8"
• Overall table dimensions: 40" W x 27" D
• Distance from front of table to center of blade: 17"
• Floor-to-table height: 34"
• Arbor diameter: 5/8"
• Arbor speed: 4200 RPM
• Maximum width of dado: 13/16"
• Footprint: 20-1/2" x 20-1/2"
• Overall dimensions: 66" W x 47" D x 39-3/4" H
• Approximate shipping weight: 508 lbs.

FEATURES:

• Solid cast-iron table is heat-treated for strength, milled perfectly flat and ground to a mirror-like finish
• Extra-large handwheels ease arbor movement
• Locking magnetic switch includes padlock and key to prevent unauthorized use
• Accepts dado blades up to 13/16" with 5/8" diameter arbor
• Large safety STOP paddle
• One-piece steel cabinet type stand
• Quick changing between riving knife and splitter guard
• 4" dust port
