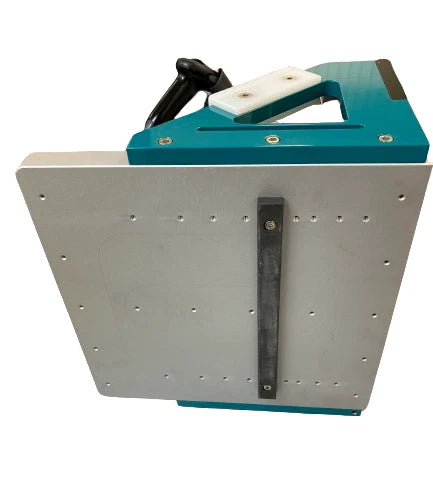

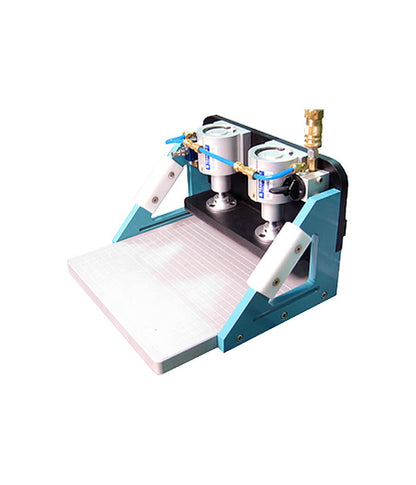

Extrema 16" Railmaster

Back in Stock for immediate shipment

The Rail-Master is the ultimate jig for coping (tenoning) the ends of door rails for 5 piece door system. 800 pounds of clamping force. Full air floation 1" thick annodized base. Adjustale miter bar locations for best fit on most shapers. Can be used without miter bar with by using straight template on shaper fence. Left and right blow out board locations. Single thumb lever activates flotation and clamping cylinders. Variable floatation regulation. Constructed of annodized aircraft grade aluminum for a heavy duty assembly for years of service.

• Floats on a cushion of air for smooth, easy operation
• Use with material thickness from 5/8″ to 2″ thick
• Proven design for years of trouble free use
• Variable flotation regulation
• Miter bar slides along Miter slot for coping cuts
• Removable miter bar for custom free-floating cuts
• Accepts templates for straight and custom curved and angled cuts
• Slack adjustment feature on miter bar
• Single thumb-lever activation
• Square grid pattern in base to assist in custom cuts
• Constructed of aircraft-grade aluminum, with anodized finish
• Right or Left hand operation
• Accepts blowout board for splinter-free cuts
• 2 CFM @ 90 PSI
• 800 ft/lbs holding

Thickness Capacity: 5/8″ to 2″

Holding Pressure: 800 ft/lbs

CFM Requirements: 2 CFM @ 90 PSI

Available in 11″ and 16″ versions

11″ Version

• Typically used for cabinet-door manufacturing
• 11.5" width capacity
• Adjustable from 5/8" to 2" thickness capacity

16″ Version

• Typically used for millwork and entry door construction
• 16" widith capacity
• Adjustable from 5/8" to 2" thickness capacity
