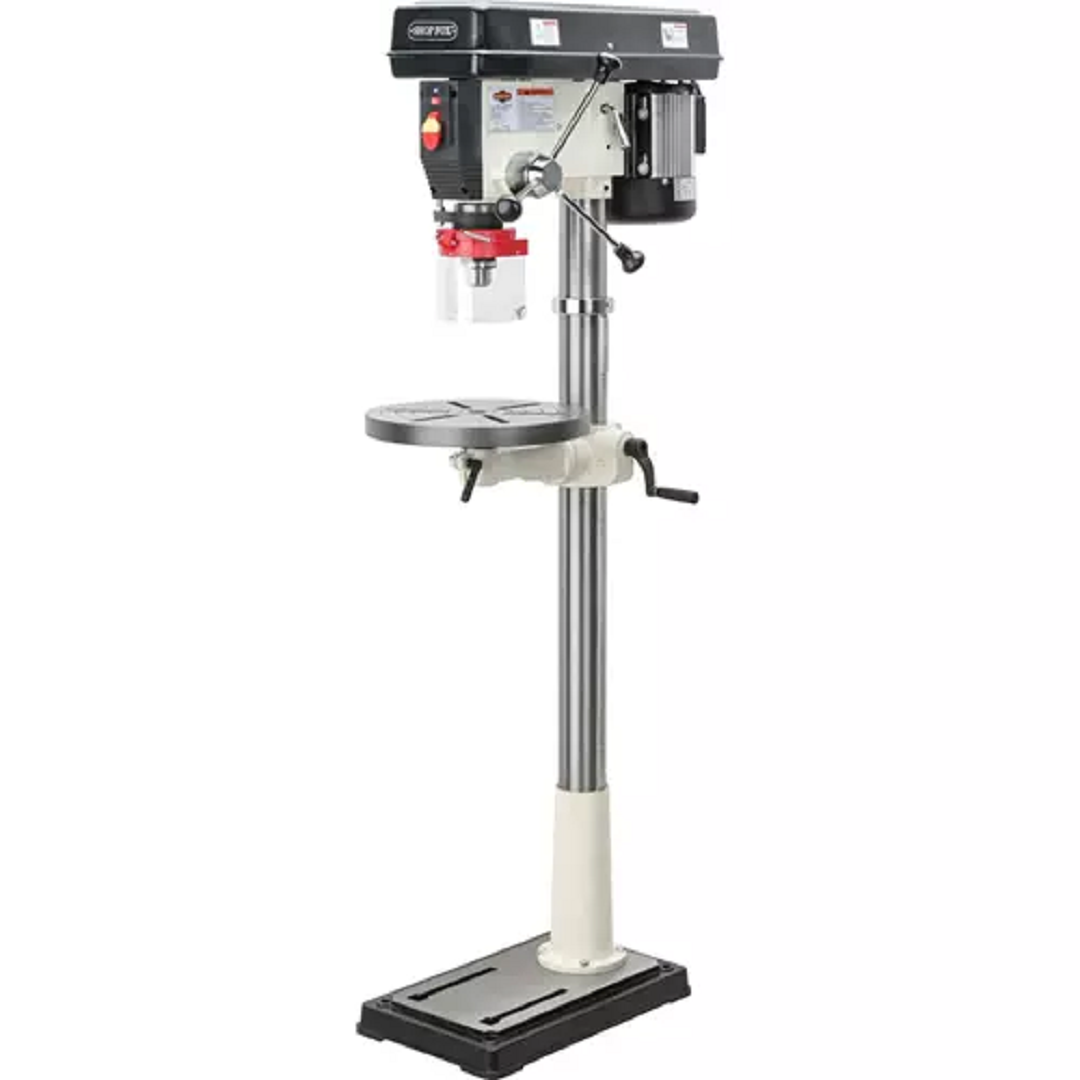

W1680 - 17" Floor Model Drill Press

SPECIFICATIONS:

• Motor: 1 HP, 110V, single-phase, 10A
• Swing: 17"
• Spindle taper: MT3
• Spindle travel: 3-1/4"
• Spindle speed: 12, 140–3050 RPM
• Drill chuck: 1/16"-5/8", JT-3
• Drilling capacity: 1" mild steel
• Maximum distance from spindle to table: 31-1/2"
• Head swivel: 360°
• Table: Round, 14" diameter
• Table tilt: 90° left/right
• Table swing: 360°
• Table T-slots: 6 @ 5/8"
• Footprint: 11" x 22-1/2"
• Overall dimensions: 14" W x 24" L x 64" H
• Approximate shipping weight: 235 lbs.
