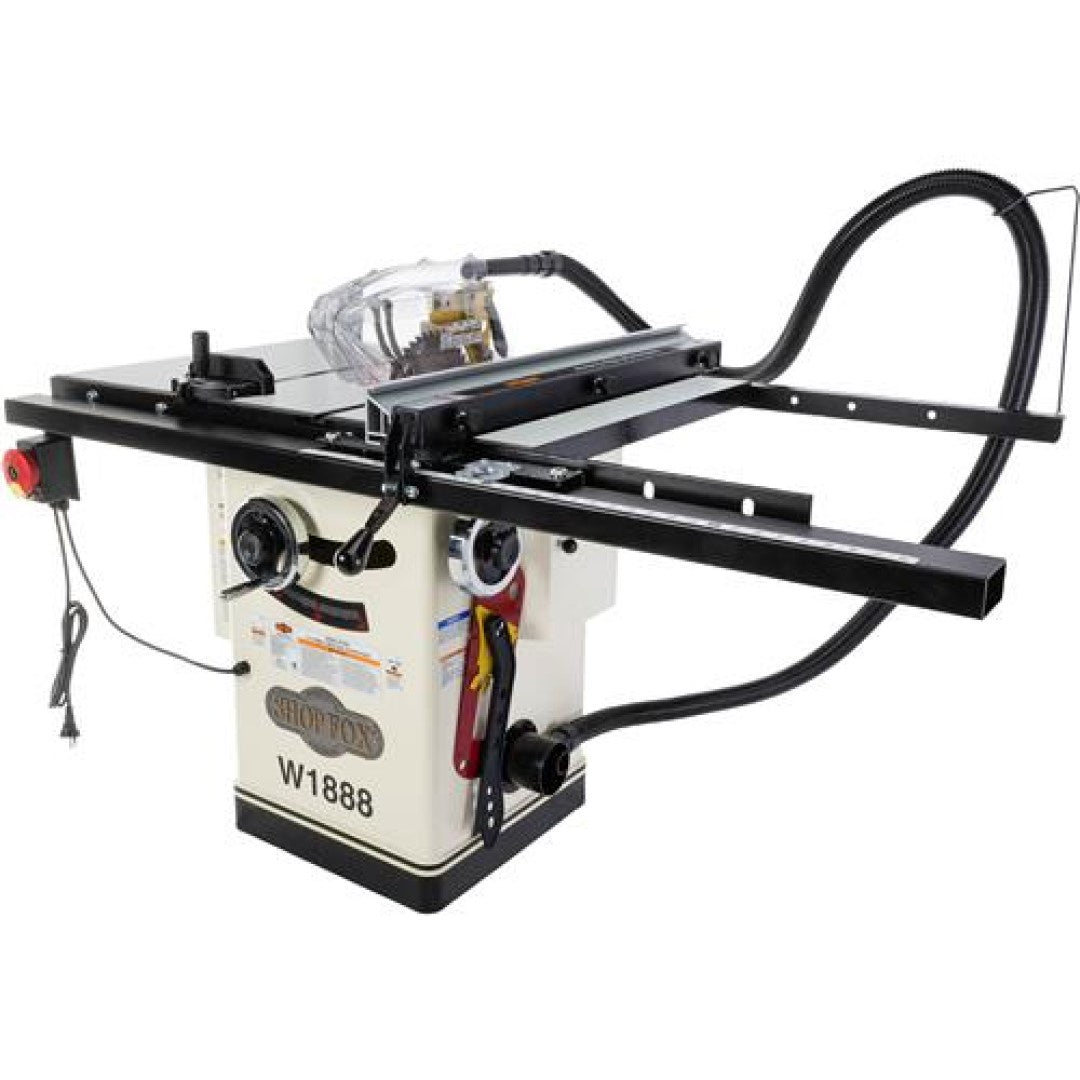

W1888 - 10" Cabinet Table Saw

Specifications:

• Motor: 2 HP, 115V/230V (prewired 115V), single-phase, 16A/8A
• Rip capacity: 31-1/2" right, 11-3/8" left of blade
• Maximum depth of cut @ 90°: 3-1/8"
• Maximum depth of cut @ 45°: 2-1/8"
• Overall table dimensions: 40-1/8" x 27"
• Distance from front of table to center of blade: 16-1/4"
• Floor-to-table height: 34-1/4"
• Arbor diameter: 5/8"
• Arbor speed: 4000 RPM
• Max width of dado: 13/16"
• Dust port size: 4"
• Footprint: 19-1/2" x 20-1/2"
• Overall dimensions: 66" W x 40" D x 48" H
• Approximate shipping weight: 449 lbs.

*This machine is prewired for 115V operation. 230V operation requires purchase and installation of conversion kit X1888224X.
