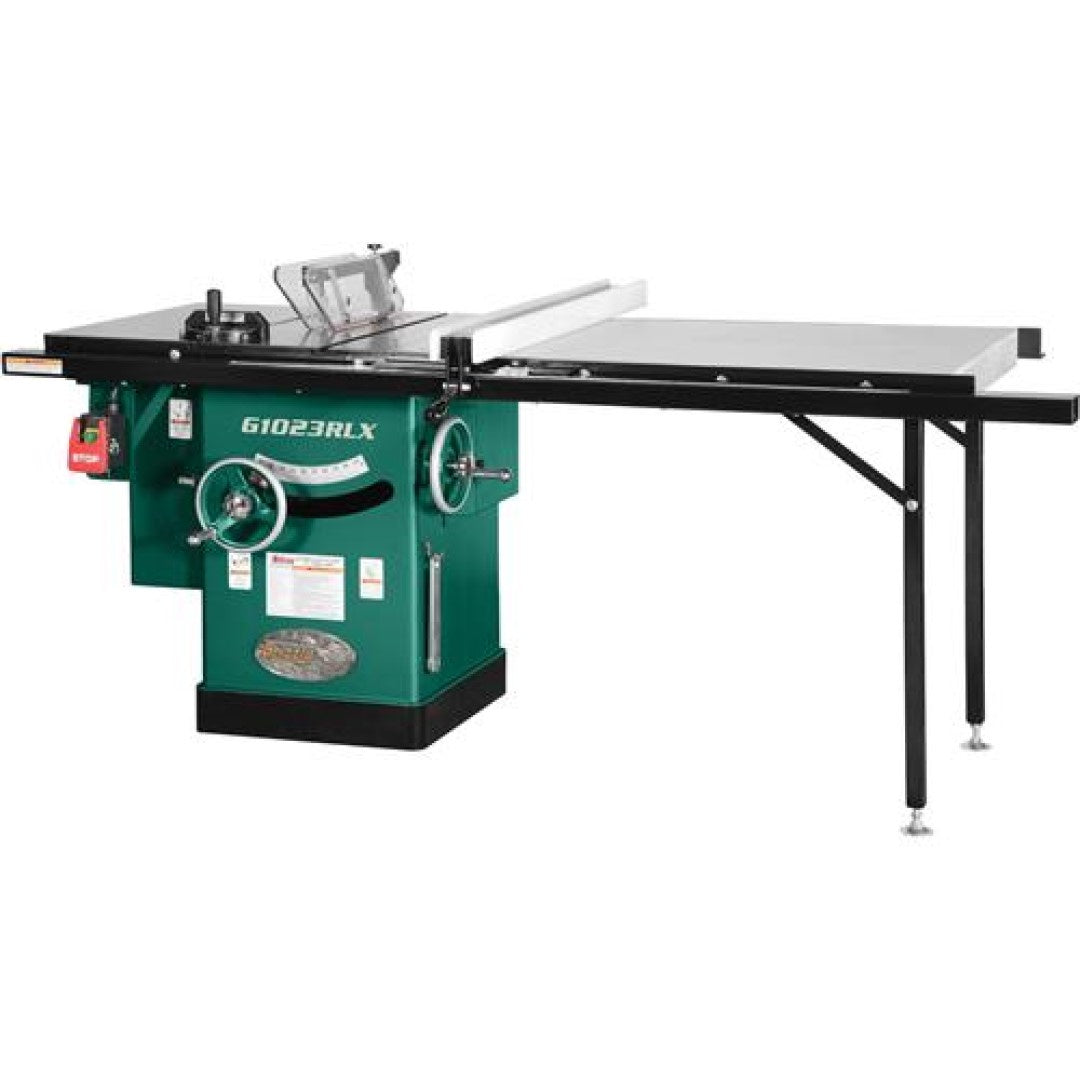

Grizzly G1023RLX 10" 3 HP 240V Cabinet Table Saw with 7' Rails

SPECIFICATIONS

• Motor: 3 HP, 240V, single-phase, 14A
• Rip capacity: 60" right, 14" left of blade
• Maximum depth of cut @ 90°: 3"
• Maximum depth of cut @ 45°: 2-1/8"
• Overall table dimensions: 74" W x 27" D
• Distance from front of table to center of blade: 17"
• Distance from front of table to blade at max. cut: 12"
• Floor-to-table height: 34"
• Arbor diameter: 5/8"
• Arbor speed: 4200 RPM
• Maximum width of dado: 13/16"
• Dust port size: 4"
• Overall dimensions: 84" W x 47" D x 40" H
• Footprint: 20-1/2" x 20-1/2"
• Approximate shipping weight: 558 lbs.

FEATURES

• Extra-large 44" x 27" extension table
• Extra-large handwheels ease arbor movement
• Quickly changes between riving knife and blade guard
• Locking magnetic switch includes padlock and key to prevent unauthorized use
• Large safety STOP paddle
• One-piece steel cabinet type stand
• All sealed ball-bearing construction
• Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts
• Underside of blade encapsulated for superior dust collection
