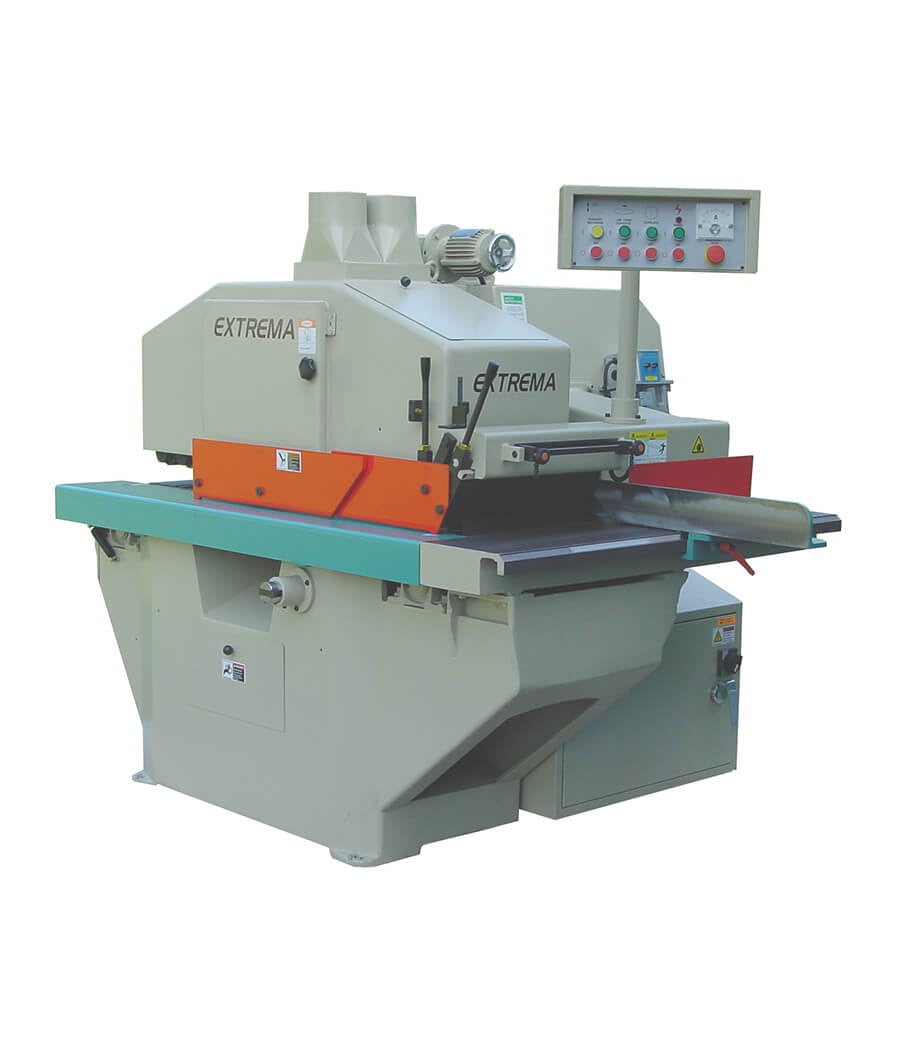

12" Dip Chain Gang Rip Saw

12" Dip Chain Gang Rip Saw

Rip Saws | Shop all Extrema Machinery Company, Inc.

XG-12

$27,999.00
$27,999.00
Sale Sold out

Delivery Methods:

Store Pickup Available

Local Delivery Available

  • Solid cast iron construction
  • Huge ripping capacity
  • Motorized pressure roller elevation
  • Removable sleeve arbor set up

Details:

  • Solid cast iron construction
  • Huge ripping capacity
  • Motorized pressure roller elevation
  • Removable sleeve arbor set up
  • Wye-delta soft start
  • Individually spring loaded hold down rollers
  • Replaceable pressure plate for problematic wood and short stock
  • Easy access swivel control panel
  • Heat treated chain and race
  • Automatic lubrication for chain and race
  • Low oil shut down keeps you from running without oil
  • Infinitely variable feed speeds: 30-130ft/min
  • Square D electrial controls
  • Camozzi pneumatic controls
  • Disc brakes for quick and sure stopping of the blades
  • Double top and single bottom kickback fingers

Specifications:

Blade Size: 12" - 16"
Main Motor: 50 HP
Feed Motor: 3 HP
Blade Speed: 3200 RPM
Feed Speed: 30 - 130
Max Rip Capacity: 32"
Table Size: 36" x 75"
Dust Collection Requirement: 1100 CFM
AMPS (230V/460V): 133A / 67A
Max Thickness Capacity: 5 1/8"
Weight: 6700 lbs

Please note: This item is purchasable for store pickup only. If you would like this item shipped instead, please contact us at (225) 567-2000 to discuss specialized shipping options.
