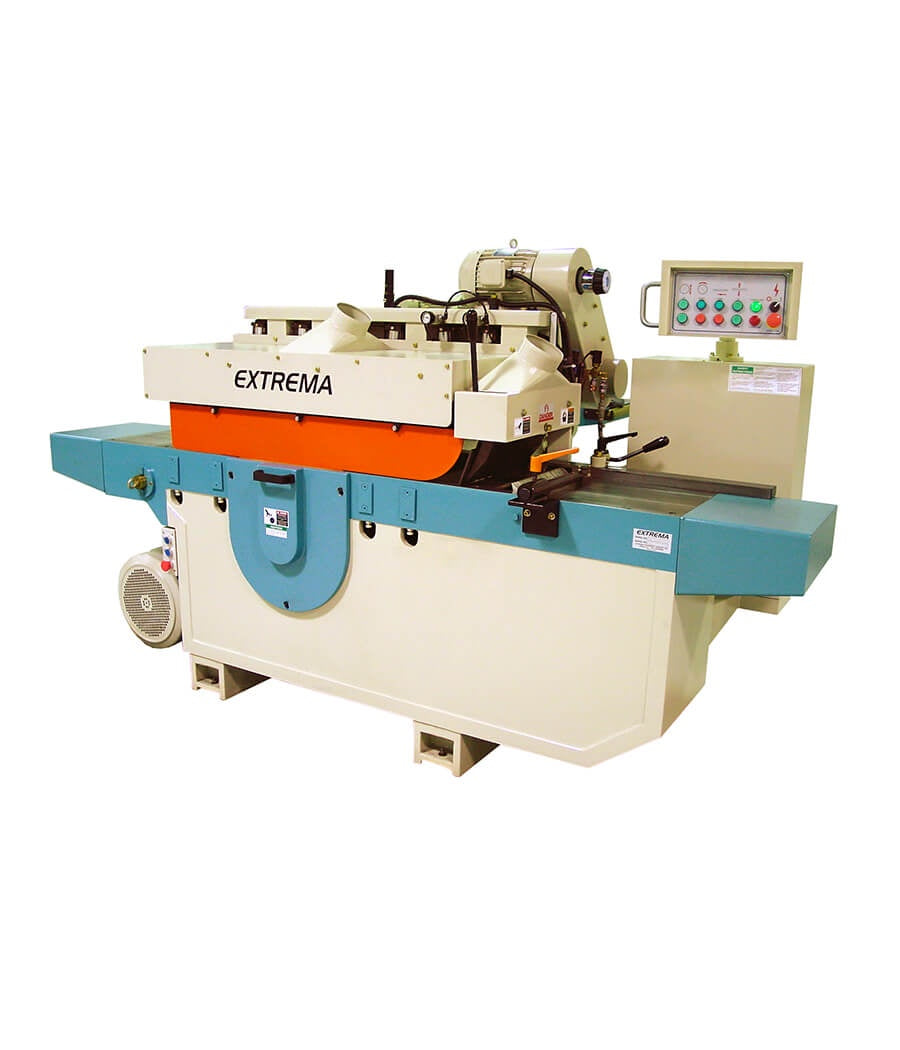

12" Roll Feed Gang Rip Saw
12" Roll Feed Gang Rip Saw
Dovetail Machines
|
Shop all Extrema Machinery Company, Inc.
SKU:XG-12R
For pricing and details, please contact us at 225-567-2000 or email sales@pmctool.com to speak with one of our salesman.
Details:
- 10″ to 16″ blade capacity
- 50 HP motor
- Pneumatic disc brakes
- Interchangeable blade sleeves
- Carden shaft drive system
- Solid cast-iron construction
- Top and bottom anti-kickback fingers
- Wye-delta soft start
- Six pneumatically loaded top rollers
- Four powered bed rollers
- Stock thickness from 3/8″ to 4-11/16″
- Replaceable pressure plate
- Easy access swivel control panel
- Motorized pressure roller elevation
Specifications:
Blade Size: 10" - 16"
Main Motor: 50 HP
Feed Motor: 3 HP
Elevation Motor: 1/4 HP
Blade Speed: 3600 RPM
Feed Speed: 30 - 120
Max Rip Capacity: 9 1/8" - 11 3/4"
Drive System: Carden Shaft
Table Size: 15" x 109"
Hold Down Rollers: 10
Disc Brakes: Yes
CFM Requirements: 3000 CFM
AMPS (230V/460V): 133A / NA
Max Thickness Capacity: 4 11/16"
Weight: 5600 lbs
