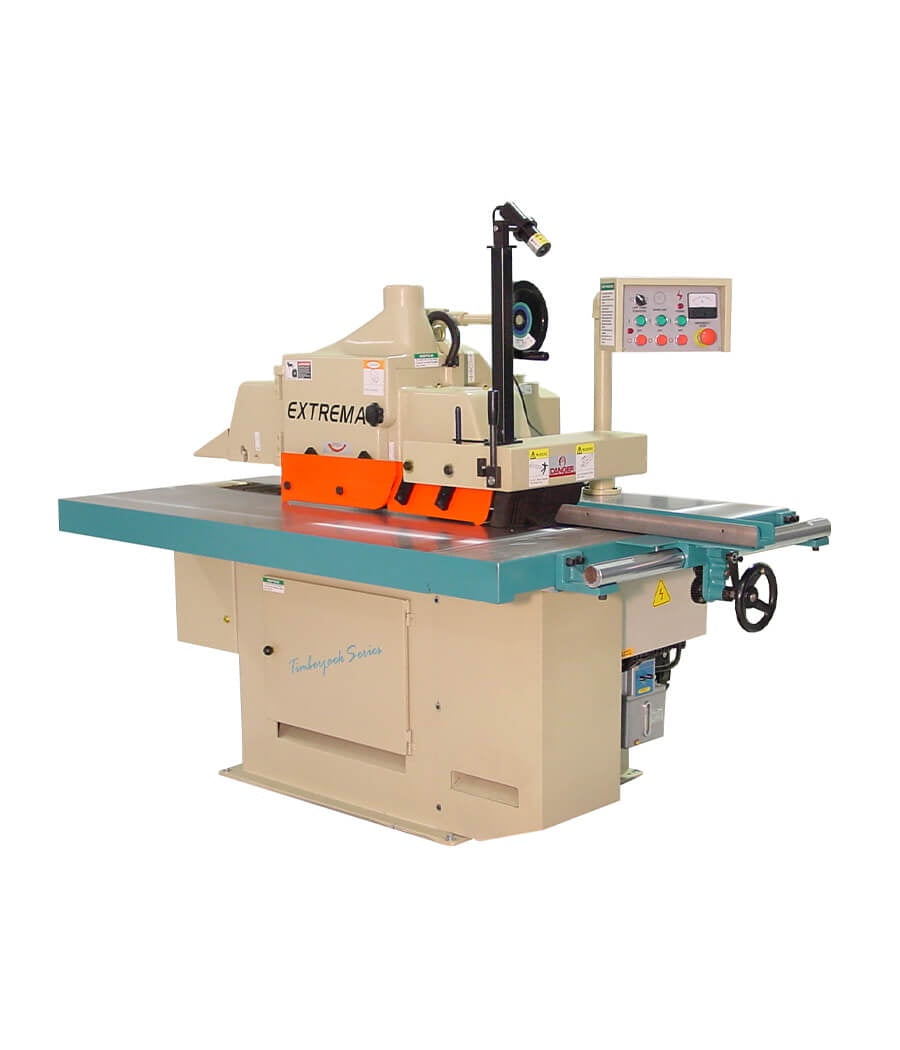

12" Straightline Rip Saw

The Timberjack series straight line rip saws lead the way in innovation and value for all size production woodworking companies. These saws are designed with the quality construction and the features that you expect from an Extrema Machine.

Deatils:

The Timberjack series straight line rip saws lead the way in innovation and value for all size production woodworking companies. These saws are designed with the quality construction and the features that you expect from an Extrema Machine.

• 15 HP Main motor
• Huge 44″ x 63″ table
• 8 hold down rollers
• Variable feed speeds from 50-150 ft/min
• 10′ Guaranteed Glue Line
• Disc Brakes
• Micro adjust fence with handwheel
• Triple anti-kickback fingers
• 14¾” wide ripping capacity
• Automatic Oiler with low-oil shut off
• Wye-Delta soft start
• Heat treated chain and race
• Amp meter
• Square D Electrical controls

Specifications:

Horsepower: 15HP

Voltage: 230V or 460V

Phase(s): 3PH

Blade Size: 12"

Main Motor: 15 HP

Feed Motor: 2 HP

Blade Speed: 4500

Feed Speed: 50 - 150

Max Rip Capacity: 14 3/4"

Working Height: 32"

Table Size: 44" x 63"

Hold Down Rollers: 8

Chain Rail Length: 40"

Chain Pad Width: 6"

Guaranteed Glue Line Length: 10'

Set of Anti-Kickback Fingers: 3

Disc Brakes: Yes

Oiler System: Auto w/ shutoff

AMPS (230V/460V): 42A / 21A

Max Thickness Capacity: 3 3/4"

Weight: 3200 lbs
