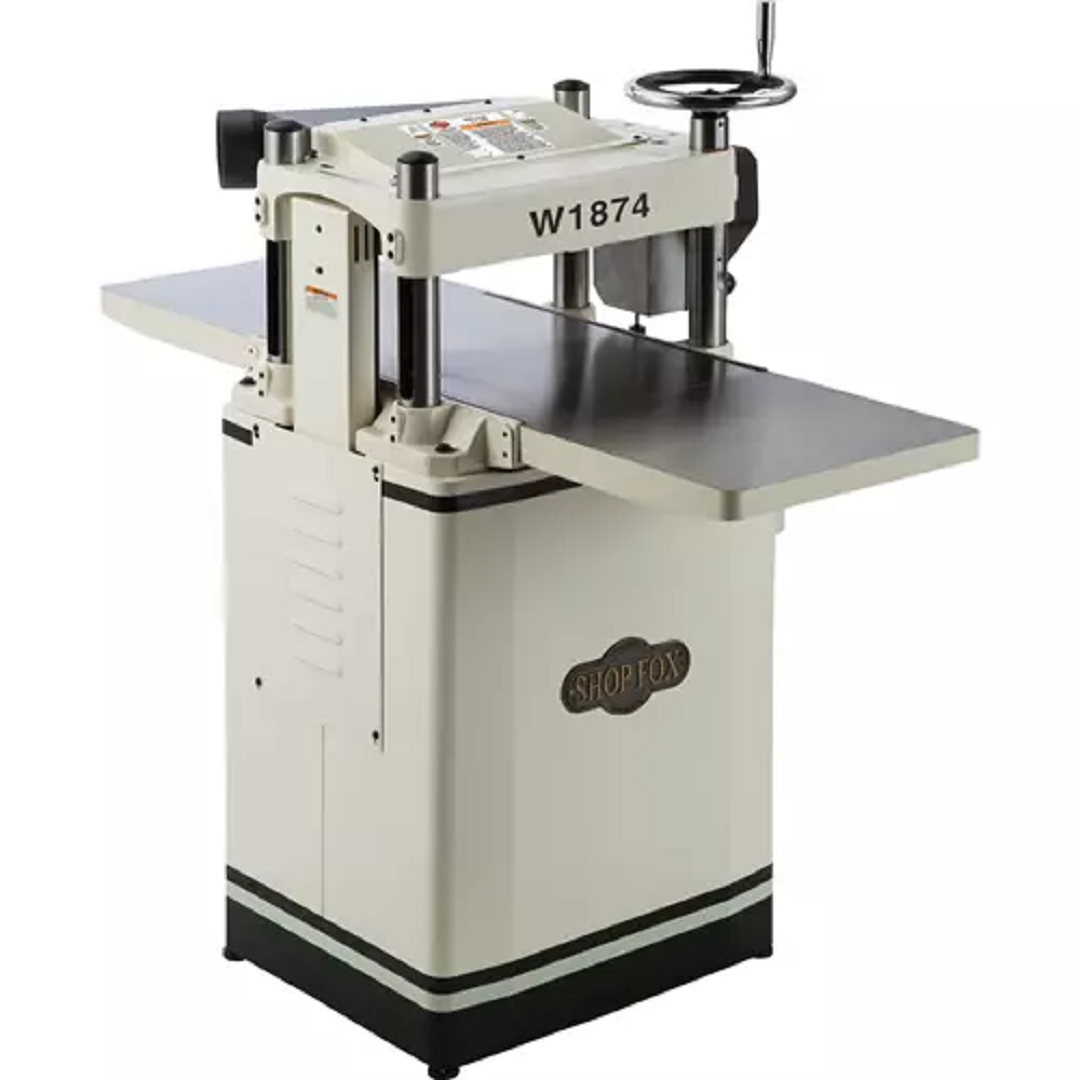

W1874 - 15'' 3 HP Fixed-Table Planer w/Helical Cutterhead

SPECIFICATIONS:

• Motor: 3 HP, 230V, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum cutting height: 3/16"
• Maximum cutting depth full width: 1/8"
• Maximum cutting depth 6" wide board: 3/16"
• Minimum length of stock: 6"
• Cutterhead diameter: 2-5/8"
• Cutterhead type: 4-row helical, 48 inserts
• Feed rate: 16, 28 FPM
• Table size: 15-1/2" x 49"
• Dust port size: 4"
• Overall dimensions: 25" W x 49" D x 47-1/2" H
• Approximate shipping weight: 377 lbs.

FEATURES:

• Four heavy-duty support columns
• Fixed table height design
• Anti-kickback fingers
• Oil bathed 2-speed gearbox
• Cast-iron extension wings
• Elevation scale with both inch and metric
• Magnetic switch
• Poly-V belt drive
• Cabinet-style stand
• Large top-mounted handwheel
