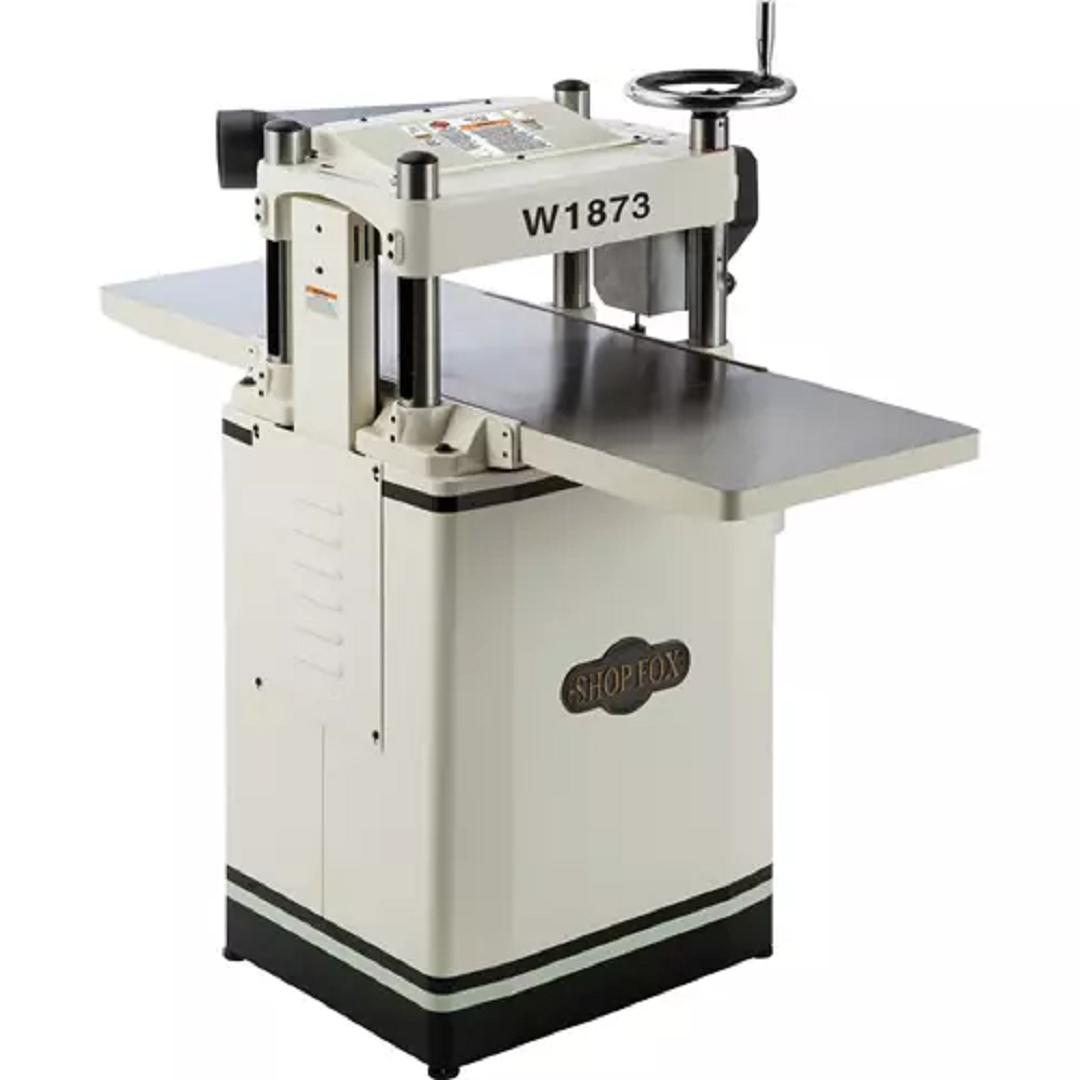

Shop Fox W1873 15'' 3 HP Fixed-Table Planer

SPECIFICATIONS:

• Motor: 3 HP, 230V, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum cutting height: 3/16"
• Maximum cutting depth planing full width: 1/8"
• Maximum cutting depth planing 6" wide board: 3/16"
• Minimum length of stock: 6"
• Feed rates: 16, 28 FPM
• Cutterhead diameter: 2-5/8"
• Cutterhead speed: 5200 RPM
• Table size w/cast-iron wings: 15-1/2"W x 49"L
• Overall dimensions: 25" W x 49" D x 47-1/2" H
• Approximate shipping weight: 374 lbs.

FEATURES:

• Four heavy-duty support columns
• Fixed table height design
• Anti-kickback fingers
• Oil bathed 2-speed gearbox
• Cast-iron extension wings
• Elevation scale with both inch and metric
• Magnetic switch
• Poly-V belt drive
• Cabinet-style stand
• Large top-mounted handwheel
