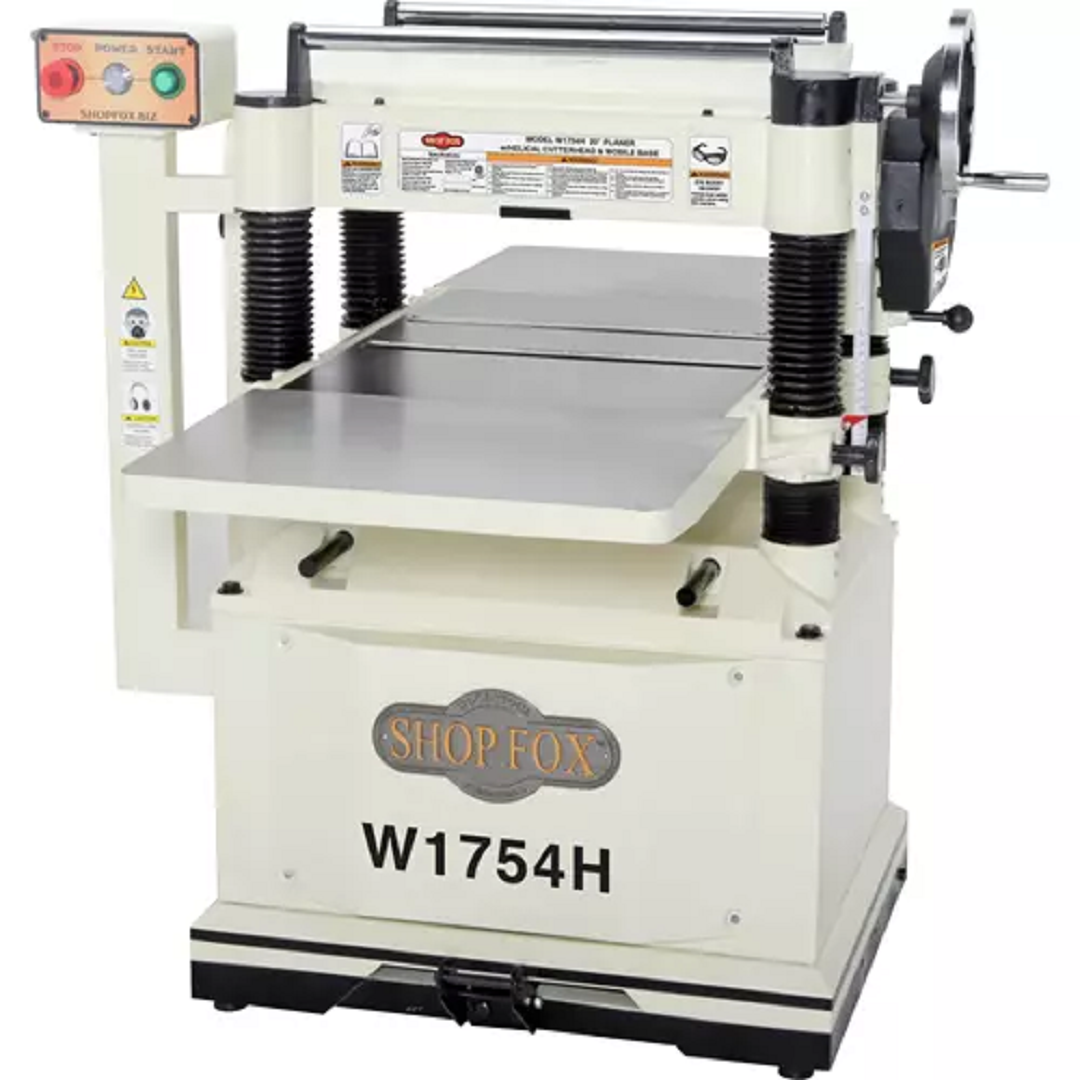

Shop Fox W1754H 20" Planer with Built in Mobile Base and Helical Cutterhead

SPECIFICATIONS:

• Motor: 5 HP, 240V, single-phase, 19A
• Maximum cutting width: 20"
• Maximum cutting height: 8"
• Minimum stock thickness: 3/16"
• Minimum stock length: 8"
• Maximum cutting depth: 1/8"
• Cutterhead type: 5-row helical, 100 inserts
• Cutterhead speed: 4800 RPM
• Feed rate: 16, 20 FPM
• Table size: 20" W x 55-1/2" L
• Overall dimensions: 43-1/2" W x 55-1/2" D x 45-7/8" H
• Approximate shipping weight: 924 lbs.

FEATURES:

• Helical cutterhead
• Built-in mobile base
• Inch and metric measurement scale
• Chip breaker and pressure bar
• 0.059" Table movement distance per handwheel revolution
• Precision-ground cast-iron wings
• Top-mounted board return rollers
• Four column support with table locks
• Two-speed automatic board feed
• Pedestal mounted magnetic safety switch with thermal protection
• Two adjustable bed rollers
