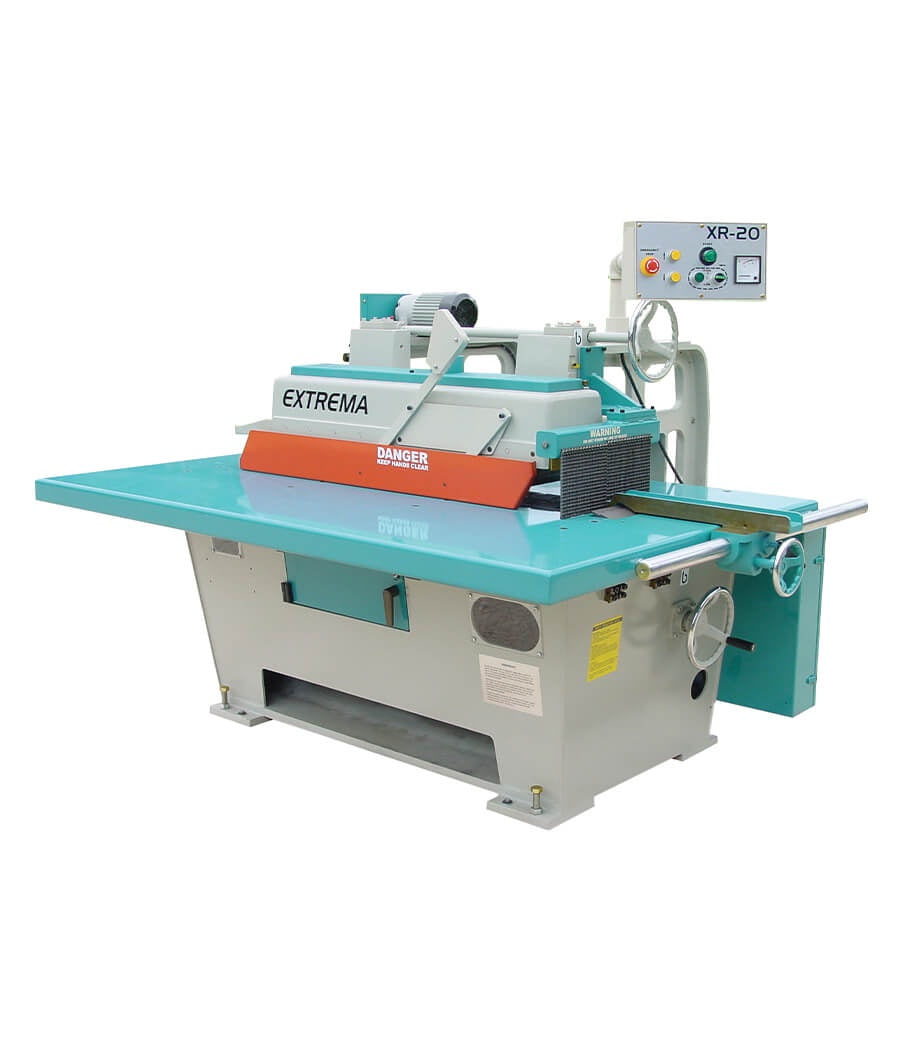

20" Straightline Rip Saw

Extrema’s XR-20 Straight Line Rip Saw has a 14″ – 20″ blade capacity, 20 HP main motor, optional digital readout, disc brakes, optional black max laser and a heat treated cast steel chain.

Details:

• 14″ – 20″ Blade capacity
• 20 HP main motor
• Automatic forced lubrication for chain and race
• Variable speed from 50 – 180 ft/min
• Rack and pinion fence system
• Square D electric controls
• Camozzi pneumatic controls
• Disc Brakes
• Triple anti-kickback fingers
• 5-1/8″ maximum thickness
• Wye-Delta soft start
• Bottom mounted blade
• 12 hold-down rollers
• Extra wide 8½” chain pads
• Motorized thickness elevation

Heat Treated Cast Steel Chain

Heat treated cast steel is very durable and dependable. It will give years of trouble free performance.

Optional Black Max Laser

The XL-10XR laser is a 10 milliwatt laser with extra high mounting arm and three-axis adjustable bracket. It can be purchased with an Extrema saw, or be retrofitted onto an existing saw.

Lasers help the operator line up the defect end of the board for straight lining operations. This will help ensure a quick, high yield ripping process. Then the fence of the saw can be used to rip to size.

Laser kit fits XR-12 and XR-20.

Specifications:

• Horsepower: 20HP
• Voltage: 230V or 460V
• Phase(s): 3PH
• Blade Size: 14" - 20"
• Main Motor: 20 HP
• Feed Motor: 3 HP
• Elevation Motor: 1/2 HP
• Blade Speed: 3600 RPM
• Feed Speed: 50 - 180
• Max Rip Capacity: 35 3/4"
• Working Height: 33 1/2
• Table Size: 52" x 82 1/2"
• Hold Down Rollers: 12
• Chain Rail Length: 53"
• Chain Pad Width: 8 1/2"
• Guaranteed Glue Line Length: 13'
• Set of Anti-Kickback Fingers: 3
• Disc Brakes: Yes
• Oiler System: Auto
• AMPS (230V/460V): 58A / 29A
• Max Thickness Capacity: 5 1/8"
• Weight: 4900 lbs
