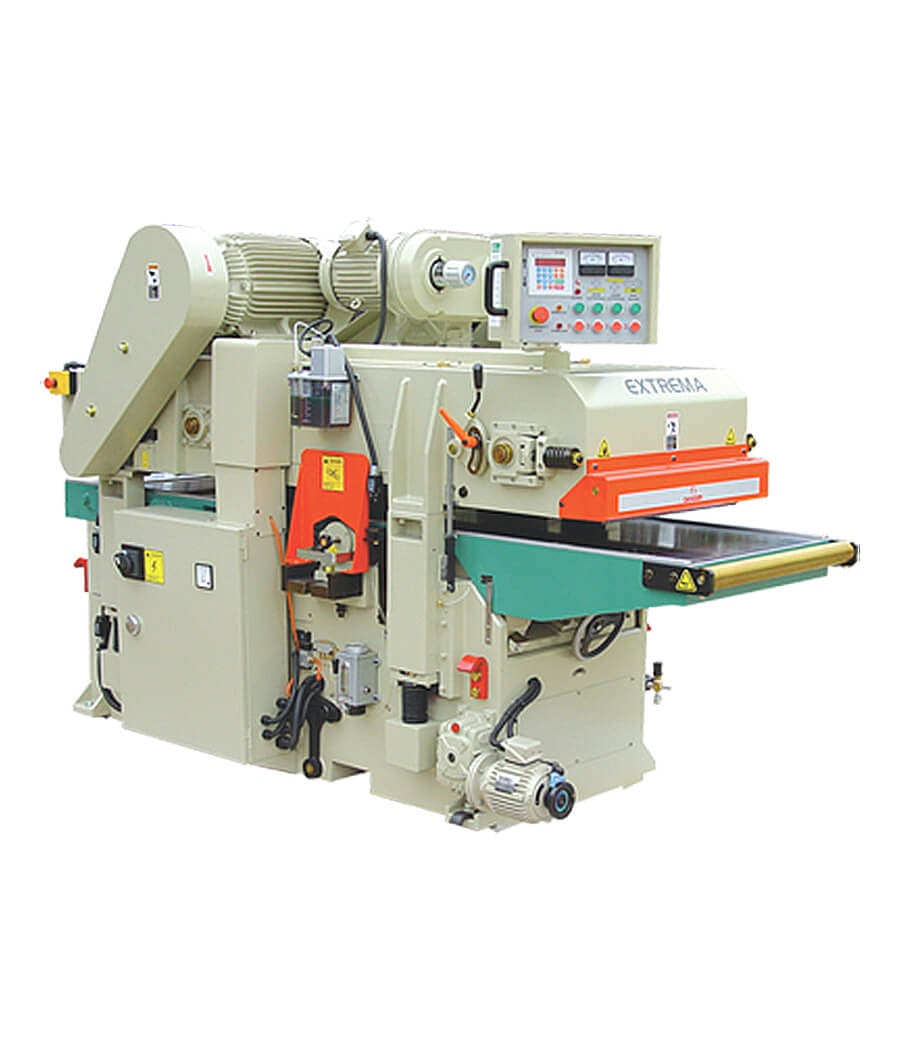

Alpha XP Series 25" Double Sided Planer

Alpha XP Series 25" Double Sided Planer

Planers | Shop all Extrema Machinery Company, Inc.

XP-225HD

$46,999.00
$46,999.00
Sale Sold out

Delivery Methods:

Store Pickup Available

Local Delivery Available

Extrema’s Alpha XP Double Sided Planer offers a jointer style carpet feed system, section chipbreaker and much more!

Details:
Extrema’s Alpha XP Double Sided Planer. We set out to produce the next generation of our ever popular standard xp, but there is nothing standard about this machine so we now introduce our new Alpha XP, the dominant force in dounle sided planers.

  • Jointer style carpet feed system
  • Slide out bottom cutter head for easy access
  • Feed speeds from 20 – 75 ft/min
  • Digital PLC thickness controller with automatic
  • 6000 RPM cutter heads
  • Square D electrical controls, Wye-Delta soft start
  • Carpet feed pressure adjustment
  • Long lasting thick chrome plated bed
  • Automatic thickness device
  • The only planer on the market with disc brakes std.
  • Available with VECTOR, MACH, STEALTH, or straight knife cutter heads
  • Centralized automatic lubrication system w/ low oil shut down
  • Overload interrupt detection
  • Sectional chipbreaker
  • Swivel control panel with amp load meters
  • Safety interlocks at access points
Specifications:
Horsepower: 30 / 20 HP
Voltage: 230V / 460V
Phase(s): 3 PH
Width: 25"
Top Motor: 30HP
Bottom Motor: 20HP
Elevation Motor: 1/2HP
Feed Motor: 3HP
Max Thickness: 8"
Min Thickness: 3/8"
Min Stock Length: 12-1/2"
Cutterhead RPM: 6000
Top Cutter Access: Rear
Bottom Cutter Access: Slide Out
Disc Brakes: Yes
Feed System: Carpet
Feed Speed: 20-75 ft/min
CFM Requirements: 3000
AMPS (220V/440V): 131A / 66A
Weight: 7900 lbs

Please note: This item is purchasable for store pickup only. If you would like this item shipped instead, please contact us at (225) 567-2000 to discuss specialized shipping options.
