Shop Fox W1678 - 26" 5 HP Drum Sander 5HP, 220v

Discontinued 26" Drum Sander 5HP, 220v

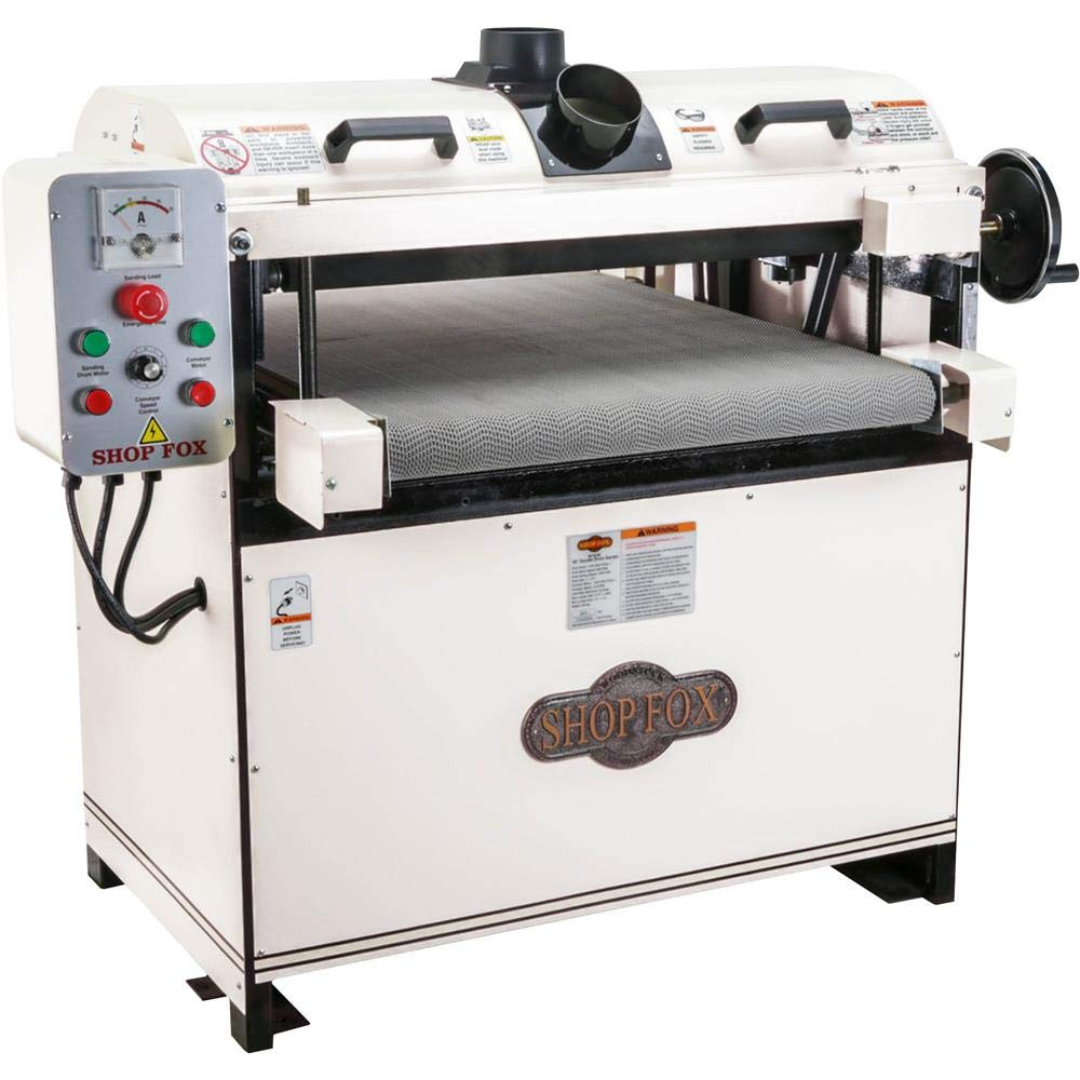

The Shop Fox W1678 26" 5 HP Drum Sander tackles large sanding projects with speed and precision. Ideal for professional shops and high-volume woodworking, this powerhouse sander boasts:

• Exceptional Capacity: Sand panels up to 26" wide and 4" thick in a single pass, maximizing productivity.

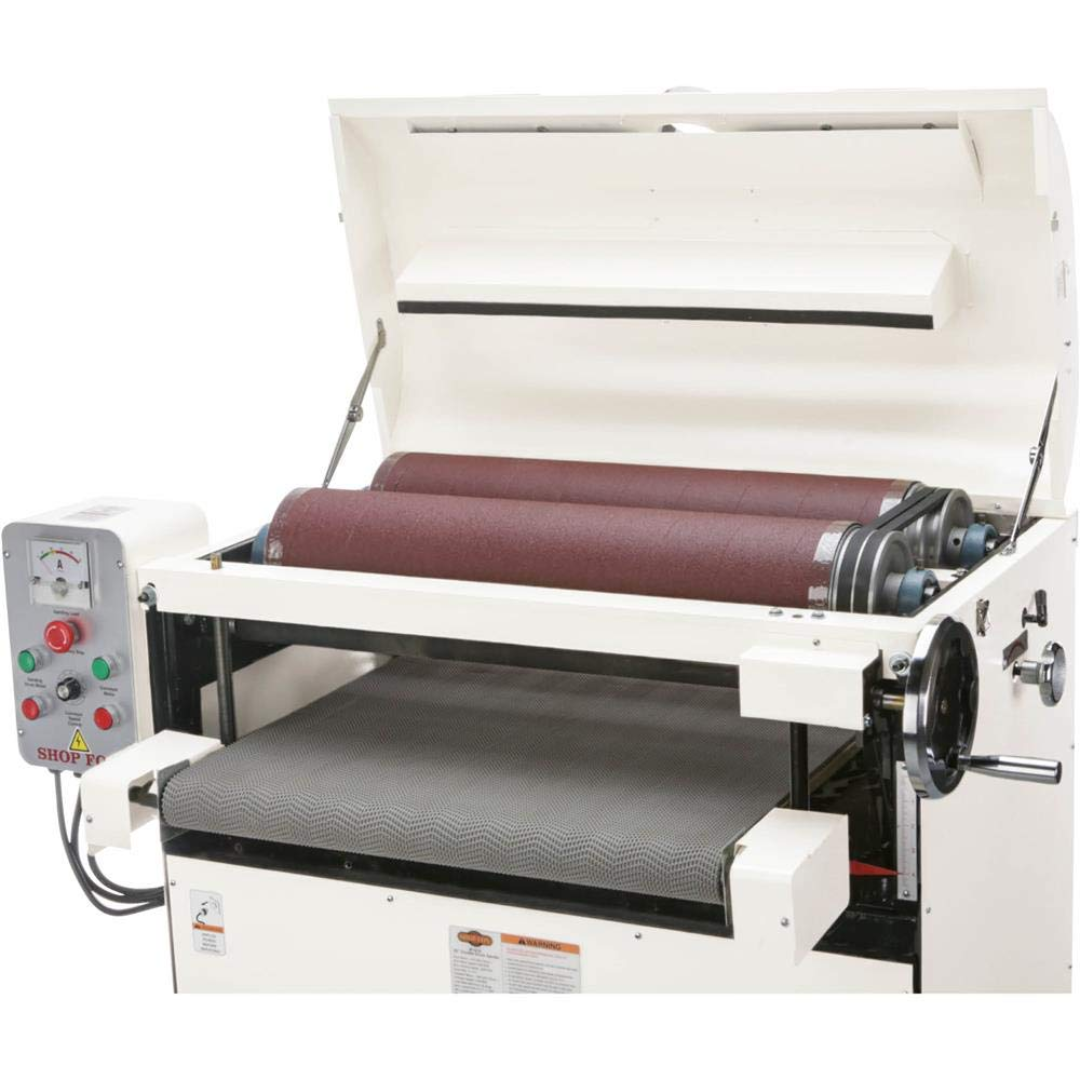

• Dual Drums for Efficiency: Rough sand and finish sand simultaneously with two independently controlled drums, each using different grits.
• Variable-Speed Control: Fine-tune the sanding process by adjusting the feed rate from 0 to 20 feet per minute for optimal results on various materials.
• Micro-Adjustable Rear Drum: Ensures consistent sanding thickness across your entire workpiece.

The hook-and-loop sandpaper length needed is 3"-wide by 195"-long. A wide selection of replacement sanding rolls, from coarse grits for fast material removal to ultra-fine grits for a flawless, high-grit finish.

• Motor size: 5 HP, 220V, 25 Amp, Single-phase, 3,450 RPM
• Capacity: 4-1/4 thick x 26-inches wide
• Feed rates: Variable (0-20 FPM)
• Conveyor motor: 1/3 HP, 2 Amp, universal
• Conveyor table size: 26-1/8 x 30-1/4-inch
• Footprint: 36-3/4 wide x 23-3/4-inches deep
• Power cord size: 10-ft x 12 AWG
• Minimum board length: 9-inches
• Minimum board thickness: 1/8-inch
• Surface speed of drums: 2,300 FPM
• Approx. shipping weight: 546 lbs.
