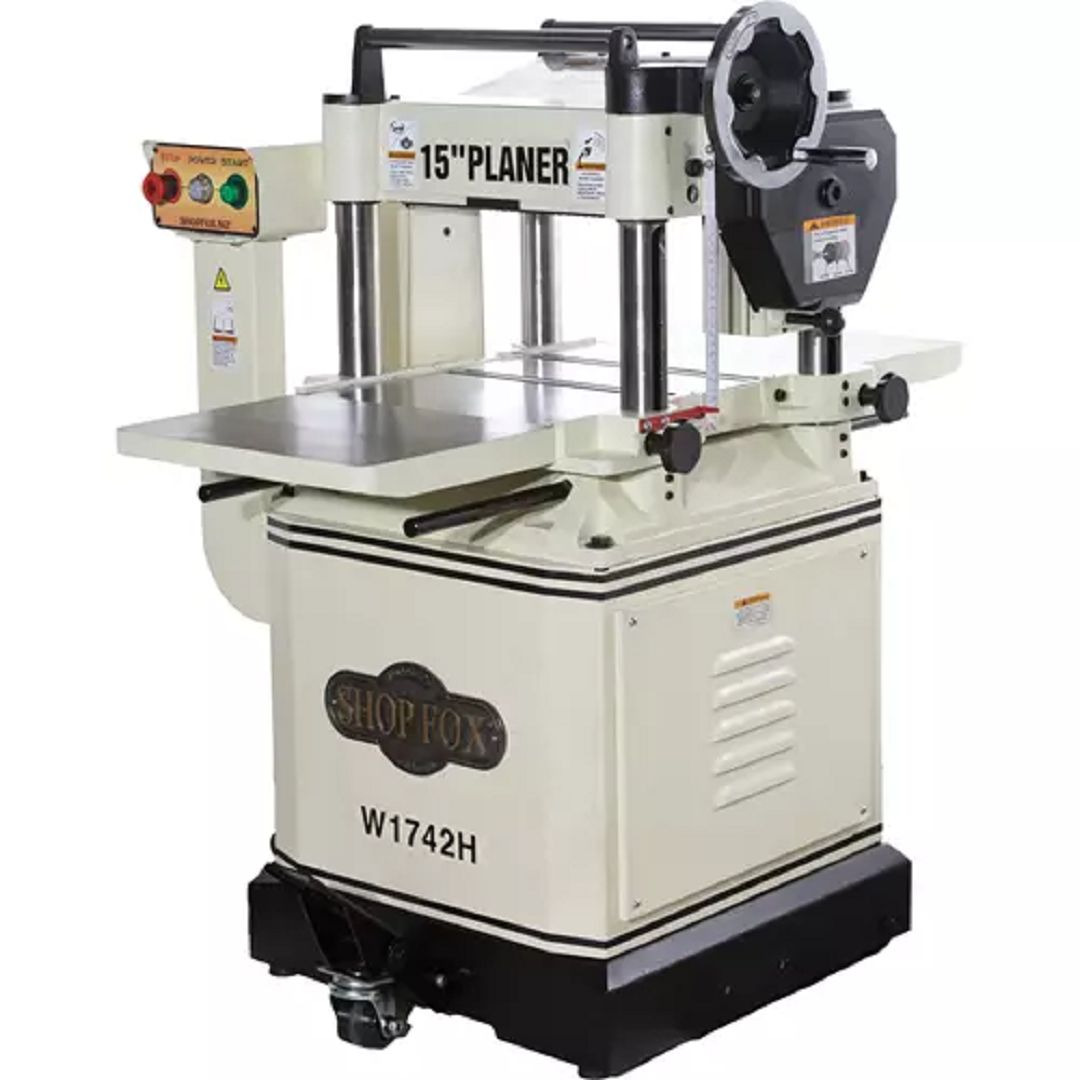

W1742H - 15" Planer with Mobile Base and Helical Cutterhead

SPECIFICATIONS:

• Motor: 3 HP, 240V, single-phase, 15A
• Maximum cutting width: 15"
• Maximum cutting height: 8"
• Minimum stock width: 3/16"
• Minimum stock length: 8"
• Maximum cut depth full width: 3/32"
• Maximum cut depth 6" wide: 1/8"
• Cutterhead diameter: 3"
• Cutterhead type: 5-row helical, 75 inserts
• Feed Rate: 16 FPM, 30 FPM
• Table size including wings: 15" W x 42" L x 1-3/4" T
• Dust port size: 4"
• Overall dimensions: 42" W x 32-1/2" D x 46" H
• Approximate shipping weight: 667 lbs.

FEATURES:

• Helical cutterhead with 75 indexable carbide inserts
• Built-in, easy-to-use mobile base
• Chip breaker and pressure bar
• Precision-ground cast-iron extension wings
• Pedestal-mounted control switch
• Inch and metric measurement table elevation scale
• Two adjustable bed rollers
• Top-mounted board return rollers
• Four-column support with positive table locks
• Two-speed automatic board feed
