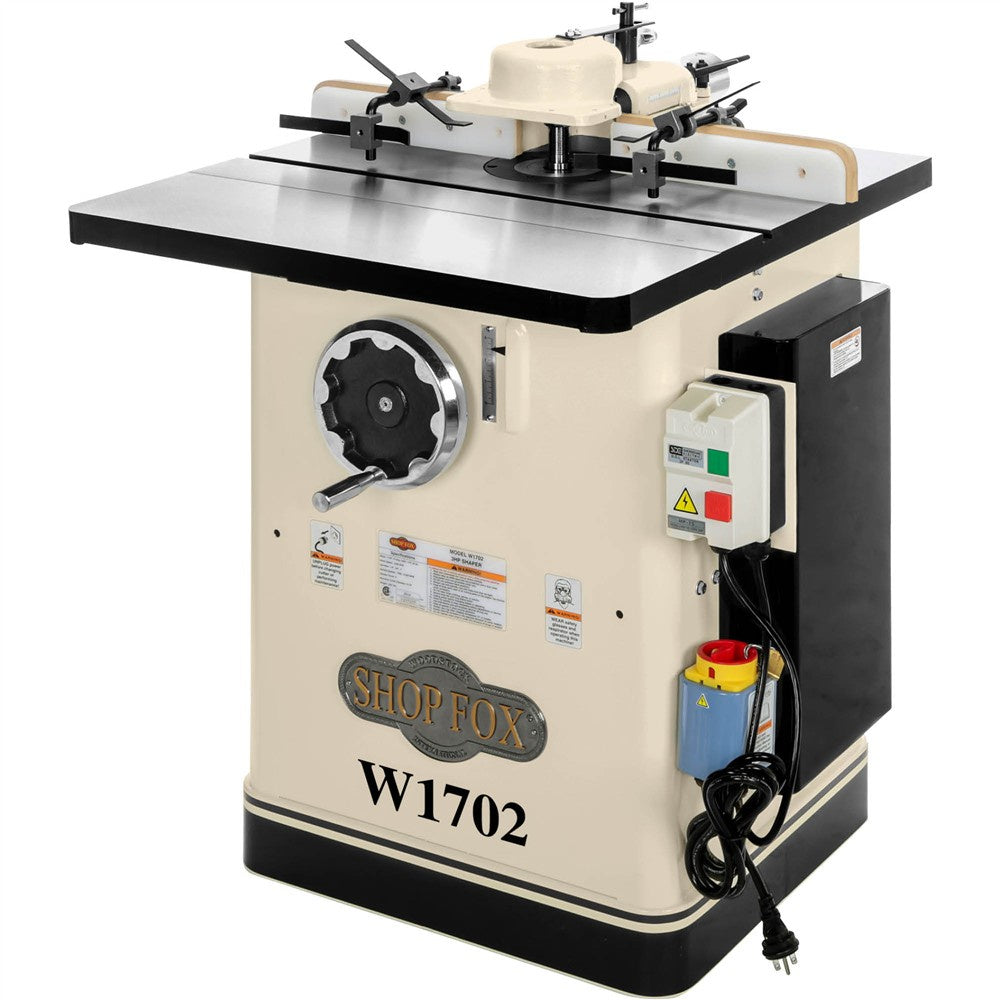

3 Hp Shaper

3 Hp Shaper

SPECIFICATIONS:

• Motor: 3 HP, 240V, single-phase, 12A
• Maximum cutter height: 2"
• Maximum cutter diameter: 5-1/2"
• Spindles: 1/2", 3/4", 1"
• Spindle lengths: 2-3/4", 3", 3-1/2"
• Spindle capacity under nut: 2", 2-1/4", 2-1/2"
• Spindle travel: 3"
• Spindle speeds: 7000, 10,000 RPM
• Spindle openings: 1-3/8", 2-3/4", 4", 5-1/2"
• Table size: 28-1/4" W x 30-1/2" D
• Floor-to-table height: 34"
• Footprint: 20" x 21"
• Overall dimensions: 30-1/2" W x 28-1/4" D x 39-1/2" H
• Approximate shipping weight: 353 lbs.

FEATURES:

• 2-year warranty!!
• Large handwheel elevates the spindle for precise control
• Spindle lock knob ensures consistent results
• T-slot miter gauge
• Magnetic switch with thermal overload protection
• Heavy cast-iron, independently adjustable, split fence allows full-edge profiling
• Built-in 3" dust port
• Large precision-ground cast-iron table
• Shielded and lubricated ball bearings
• Interchangeable spindle are easy to change
• Removable table inserts provide work support close to the cutter
