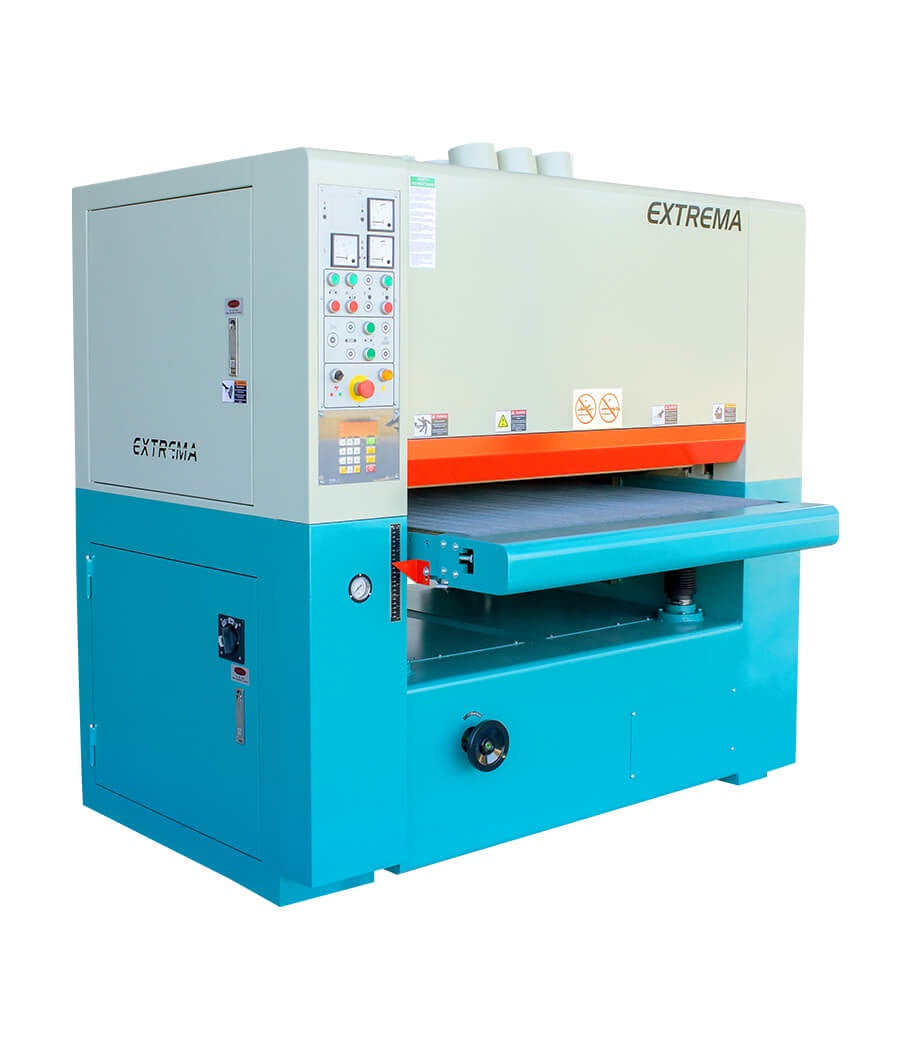

37" 25 / 20 HP Excess Series Wide-Belt Sander

37" 25 / 20 HP Excess Series Wide-Belt Sander

• 60″ belt length
• Mono-block construction increases durability
• Dual display digital thickness controller
• Omron electronic eye sanding belt tracking
• Wye-delta soft start
• Regal variable speed drive unit
• Quality pneumatic controls by Camozzi
• Automatic conveyor belt tracking
• Auto thickness device for easy set up

Details

Our commitment is to affordable quality.

Extrema offers a full range of wide belt sanders that were designed in the USA especially for the American market. All of our sanders are built using the highest quality components and construction methods such as mono-block construction, electrical controls, and Camozzi pneumatics.

Excess Series

Exceess Series wide belt sanders use a 60″ belt. Theses machines have the same quality construction as our larger machines, but are affordable enough for even the smaller manufacturers. Truly an “excessive” amount of features for sander in its class.

Specifications

Horsepower: 25/20HP

Voltage: 230V or 460V

Phase(s): 3PH

Belt Size: 37" x 60"

CFM Requirement: 3600

Main Motor: 25 / 20 HP

Feed Motor: 3 HP

Elevation Motor: 0.5 HP

Contact Drum Size: 8" / 4.75"

Conveyor Speed (ft/min): 15 - 50

Max Thickness: 6"

Min Thickness: 1/8"

Width: 37"

Head Count: 2

Amps (220V / 460V): 122A / 61A

Weight: 4600
