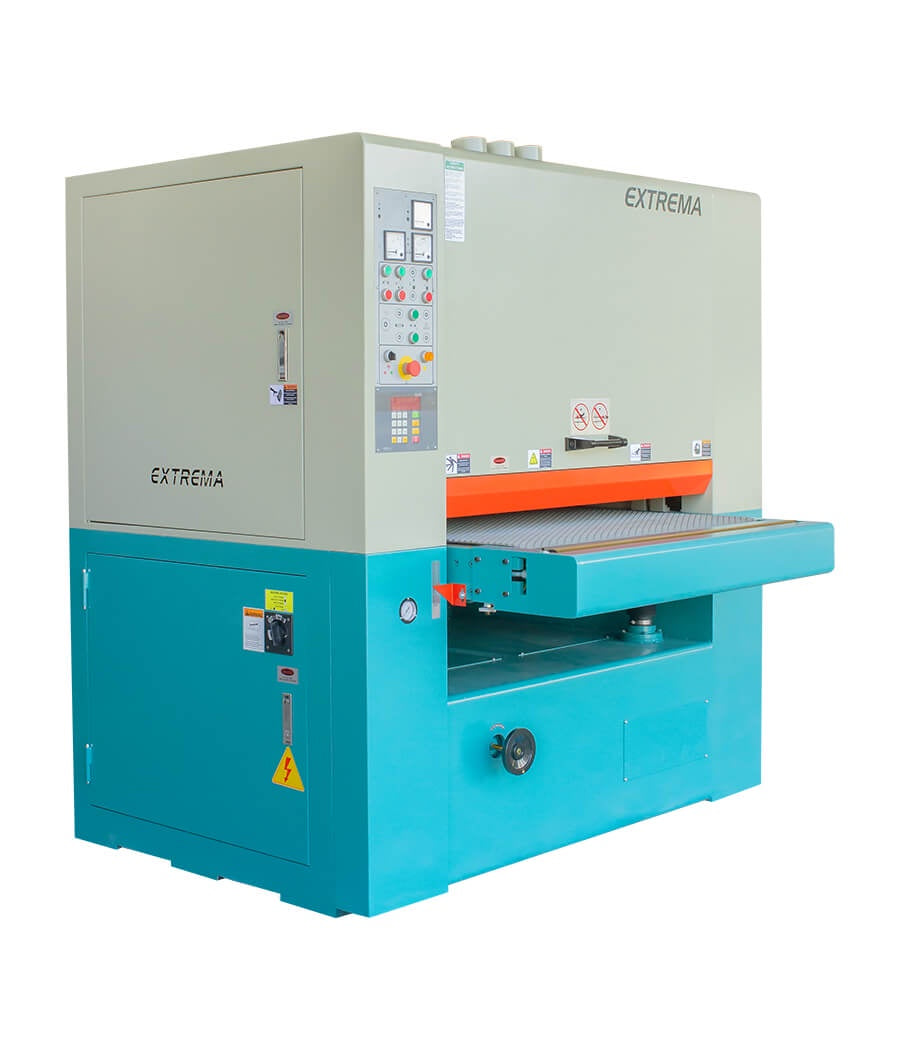

37" 25 / 20 HP Performa Series Wide-Belt Sander

37" 25 / 20 HP Performa Series Wide-Belt Sander

• 75″ Belt Length
• Over thickness safety device
• Infeed bed rollers
• Digital thickness controller
• Individual amp meters
• Disc brakes on sanding heads
• Telemecaique electrics
• Camozzi pneumatics
• Variable speed drive system

Details

Extrema offers a full range of wide-belt sanders that were designed in the USA especially for the American market. All of our sanders are built using the highest quality components and construction methods such as mono-block construction, electrical controls, and Camozzi pneumatics. So, it does not matter whether it’s our best selling “Excess Series” or our massive industrial “Super Series,” you can rest assured that your sander will be there for the long haul.

Specifications

Horsepower: 25/20HP

Voltage: 230V or 460V

Phase(s): 3PH

Belt Size: 37" x 75"

CFM Requirement: 3600

Main Motor: 25 / 20 HP

Feed Motor: 3 HP

Elevation Motor: 0.5 HP

Contact Drum Size: 8" / 5"

Conveyor Speed (ft/min): 15 - 50

Max Thickness: 6"

Min Thickness: 1/8"

Width: 37"

Head Count: 2

Amps (220V / 460V): 122A / 61A

Weight: 5700 lbs
