Extrema 43" 25 HP Excess Series Wide-Belt Sander

Excess Series

Excess Series wide belt sanders use a 60″ belt. Theses machines have the same quality construction as our larger machines, but are affordable enough for even the smaller manufacturers. Truly an “excessive” amount of features for sander in its class.

• 60″ belt length
• Mono-block construction increases durability
• Dual display digital thickness controller
• Omron electronic eye sanding belt tracking
• Wye-delta soft start

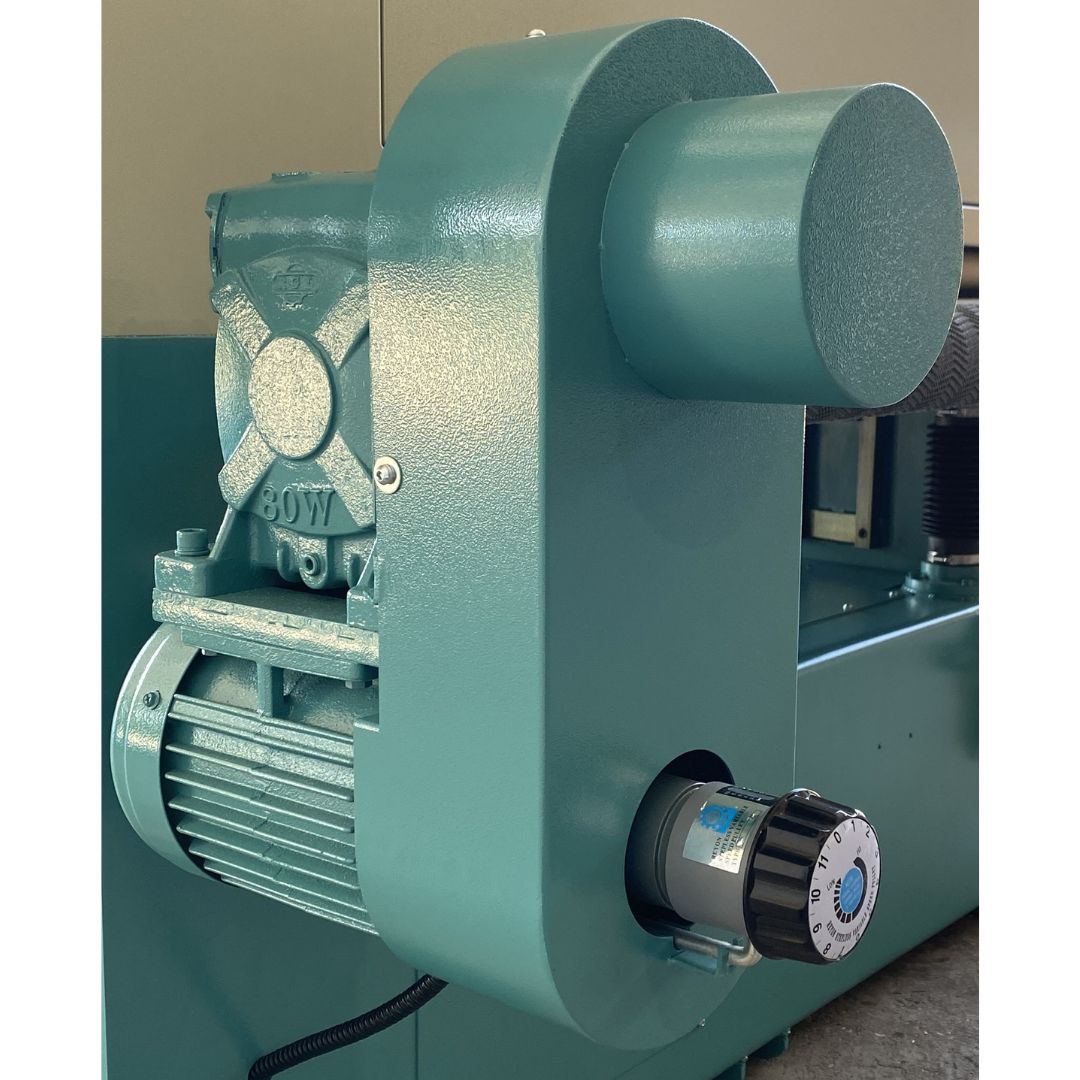

• Regal variable speed drive unit
• Quality pneumatic controls by Camozzi
• Automatic conveyor belt tracking
• Auto thickness device for easy set up

Specs:

• Horsepower: 25HP
• Voltage: 230V or 460V
• Phase(s): 3PH
• Belt Size: 43" x 60"
• CFM Requirement: 2100
• Main Motor: 25 HP
• Feed Motor: 2 HP
• Elevation Motor: 0.5 HP
• Contact Drum Size: 4.75"
• Conveyor Speed (ft/min): 15 - 50
• Max Thickness: 6"
• Min Thickness: 1/8"
• Width: 43"
• Head Count: 1
• Amps (220V / 460V): 62A / 31A
• Weight: 3600 lbs
