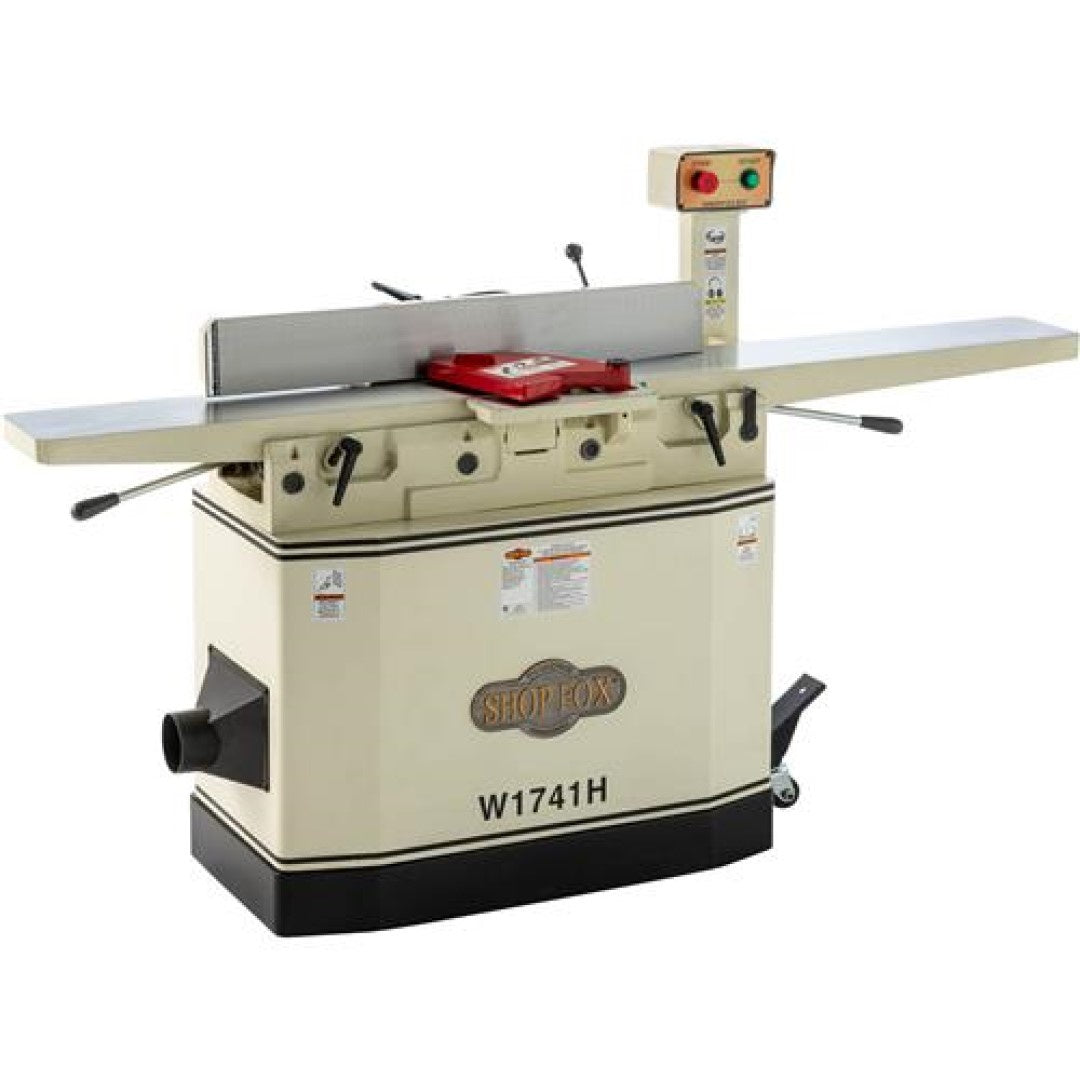

W1741H - 8" Jointer with Adjustable Beds and Helical Cutterhead

Features:

• Shielded and lubricated bearings
• Precision-ground cast-iron table
• Parallelogram table design allows for full adjustability and calibration
• Built-in dust chute with 4" port
• Powder-coated finish

Specifications:

• Motor: 3 HP, 240V, single-phase, 15A
• Switch: magnetic with thermal-overload protection
• Deluxe cast iron fence size: 36" L x 1-1/4" W x 5" T
• Table size: 76-3/8" L x 8" W x 1-1/2" T
• Cutterhead diameter: 3-3/16"
• Cutterhead type: Spiral with German-made indexable carbide inserts
• Cutterhead speed: 5350 RPM
• Max. depth of cut: 1/8"
• Max. rabbeting depth: 5/8"
• Max. width of cut: 8"
• Approximate shipping weight: 600 lbs.
