8" Parallelogram Jointer with Helical Cutterhead and Mobile Base

8" Parallelogram Jointer with Helical Cutterhead and Mobile Base

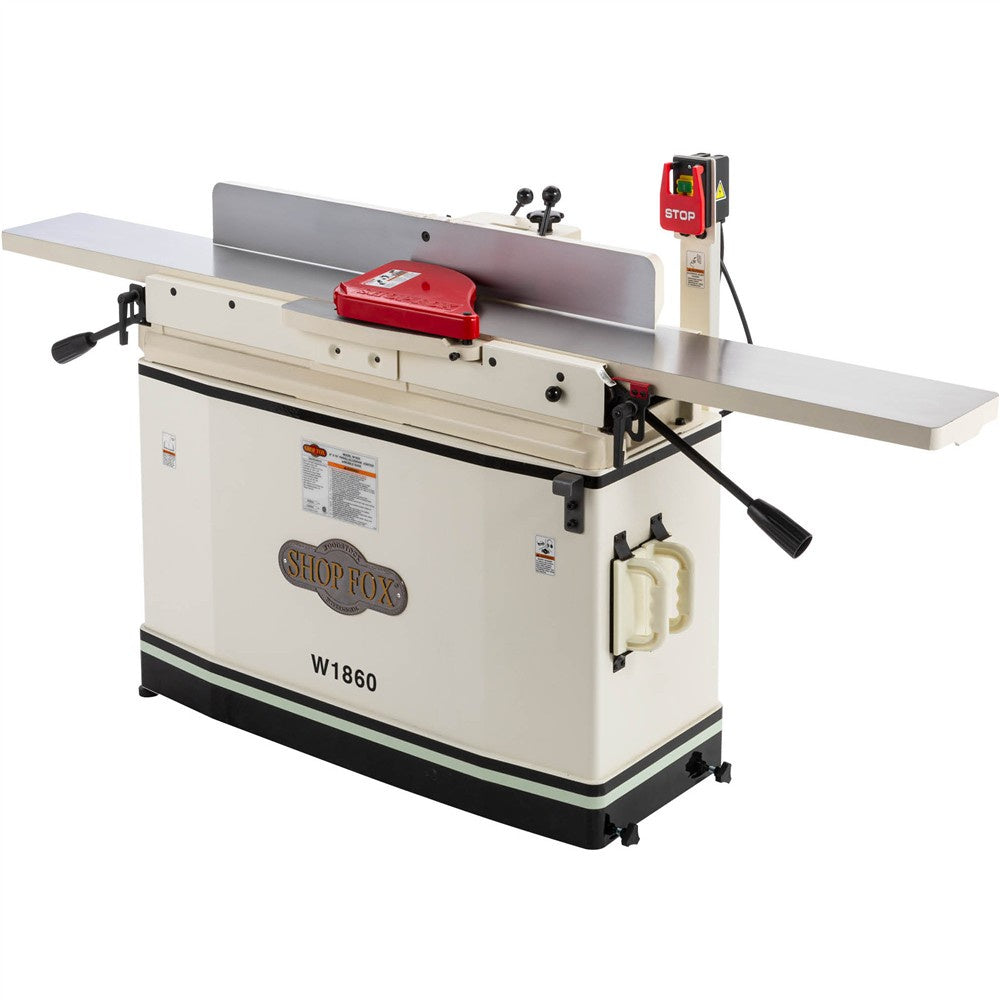

Shop Fox 8" Parallelogram Jointer with Helical Cutterhead and Mobile Base (W1860) features extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing.

The Shop Fox W1860 jointer is equipped with 36 four-sided indexable carbide inserts. Each insert can be removed, rotated, and reinstalled to use any one of its four cutting edges. Therefore, if one cutting edge becomes dull or damaged, simply rotate it 90 degrees to use a sharp cutting edge. Additionally, W1860 comes with a handy built-in mobile base for ease of movement.

• Specifications and Dimensions
  • Motor: 3 HP, 230V, single-phase
  • Total table size: 9" x 76"
  • Fence size: 4-1/8" x 38"
  • Maximum depth of cut: 1/8"
  • Rabbeting capacity: 1/2"
  • Cutterhead speed: 5500 RPM
  • Helical Cutterhead
  • Cutterhead diameter: 3-1/16"
  • Cuts per minute: 22,000
  • Number of cutterhead inserts: 36
  • Insert size: 15.0 x 15.0 x 2.5mm
  • Power transfer: Poly V-belt
  • Parallelogram table design
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Lever-adjusted table height with depth gauge
  • Precision-ground cast-iron tables
  • Extra long 40" infeed table
  • Powder-coated finish
  • Switch: magnetic push-button switch with large off paddle for safety
  • 4" dust port with built-in dust chute
  • Fence system: positive stops at +/- 45 degrees and 90 degrees
  • Approximate shipping weight: 470 lbs.
  • CSA certified

• Key Features and Benefits
  • Helical cutterhead with 36 four-sided carbide inserts for smooth cuts
  • Extra-long infeed and outfeed tables for precision jointing
  • Pedestal-mounted magnetic switch for safety and convenience
  • Built-in mobile base for easy movement and positioning
  • Center-mounted fence with rack and pinion adjustment
