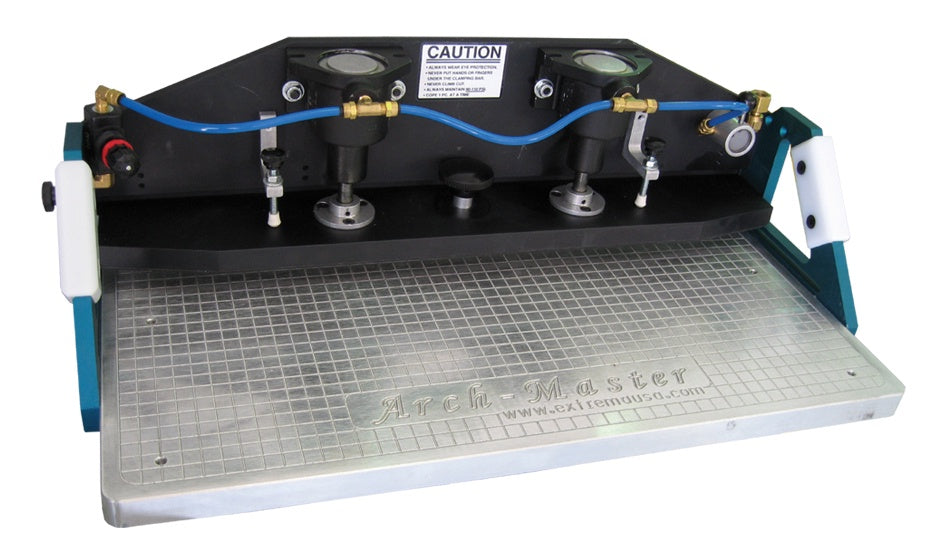

ArchMaster AM-24 Panel Arching Jig

Archmaster AM24

The Archmaster is a fast, safe, and efficient machine for arching panels and rails for doors. The
archmaster is specifically designed to shape both the arched rails and panels. It effortlessly
floats on a cushion of air while securely holding the panel or rail with pneumatic clamps and wont slide off of the shaper table. In addition, it is adjustable to be used on both cabinet and entry doors.

Features
– Effortlessly floats on a cushion of air.
– Single thumb action activates clamp and floatation

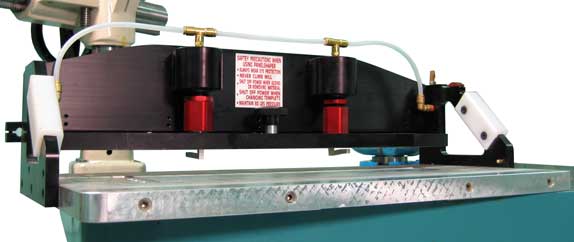

-Self centering mechanism.
– Single model 24″ width capacity
– Adjustable: Use for both cabinet doors and entry doors.

Accessory templates available for cathderal arch and eyebrow arch panels

AM-24 Specifications
– Max Width: 24″
– Max Height: 2-1/4″
– Min. Height: 3/4″
– Air Requirement: 1CFM @ 85psi
– Holding Power: 800 ft/lbs
