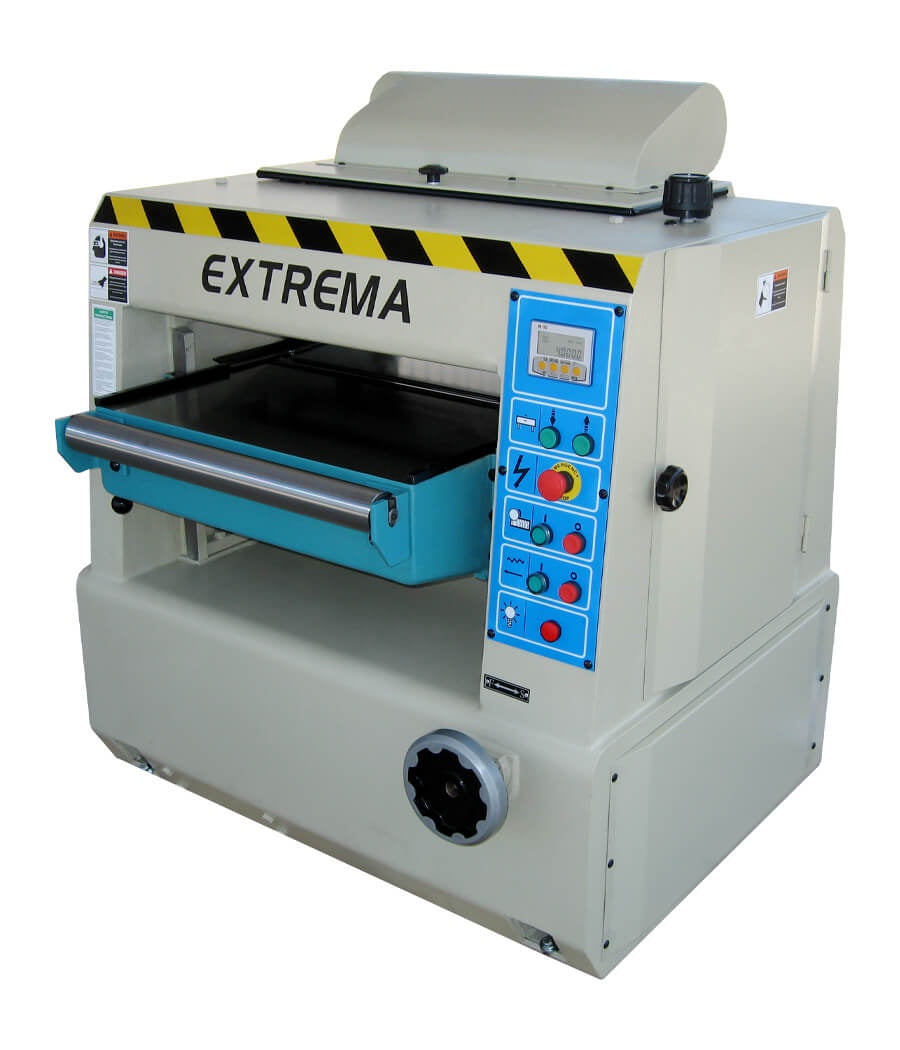

Euro XP Series 10HP Single Sided Planer

Extremas Euro XP Single Sided Planer is available with VECTOR Cutterheads and deluxe digital readout for XP-610.

Details:

Extremas Euro XP Single Sided Planer is available with VECTOR Cutterheads and deluxe digital readout for XP-610.

• XP-610 (10HP)
• Solid cast-iron construction
• Solid infeed rollers
• Huge 8-3/4” thickness capacity
• 6000 RPM cutterheads
• Infinitely variable speeds 20-42 ft/min
• Motorized table elevation
• Slide scale digital readout on XP-610
• Available with straight,
• STEALTH, or VECTOR cutterheads
• Heavy duty screwjack elevation system
• Easy access internal workings
• External bed roller adjustments

Specifications:

Horsepower: 10 HP

Voltage: 230V / 460V

Phase(s): 3 PH

Width: 24"

Main Horsepower: 10 HP

Feed Horsepower: 1 HP

Elevator Horsepower: 1/2 HP

Max Thickness: 8 3/4"

Min Thickness: 0.375"

Max Cut: 0.25"

Min Length: 10.5"

Cutterhead RPM: 6000

Top Cutter Access: 20-42 ft/min

CFM Requirements: 1000

Thickness Adjustment: Motorized

Bed Roller Adjustment: Extrernal

Power Bed Rollers: Top and Bottom

Sectional Infeed Rollers: Optional

AMPS (230V/460V): 28A / 14A

Weight: 2120 lbs
