Hingemate 350 Hinge Mortise

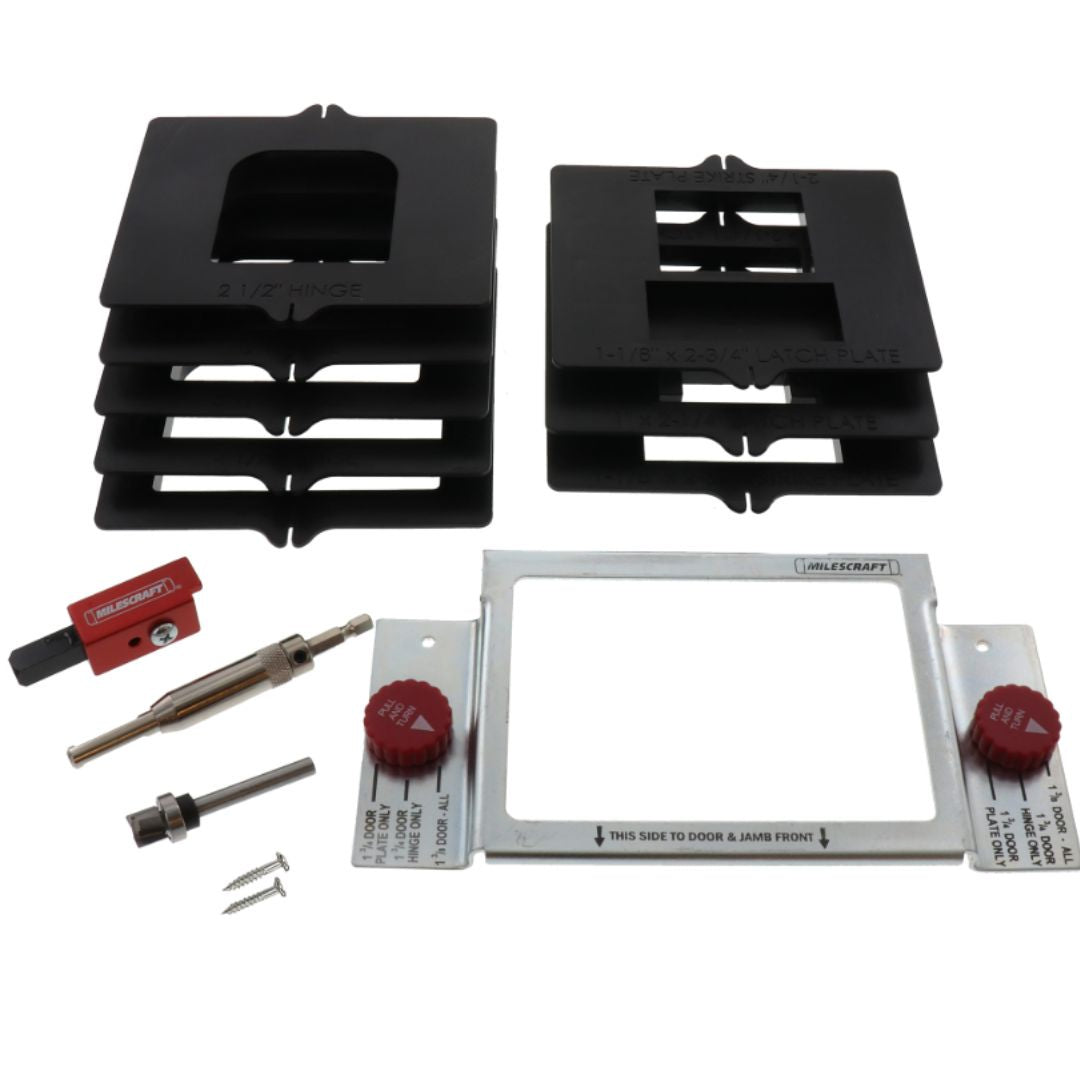

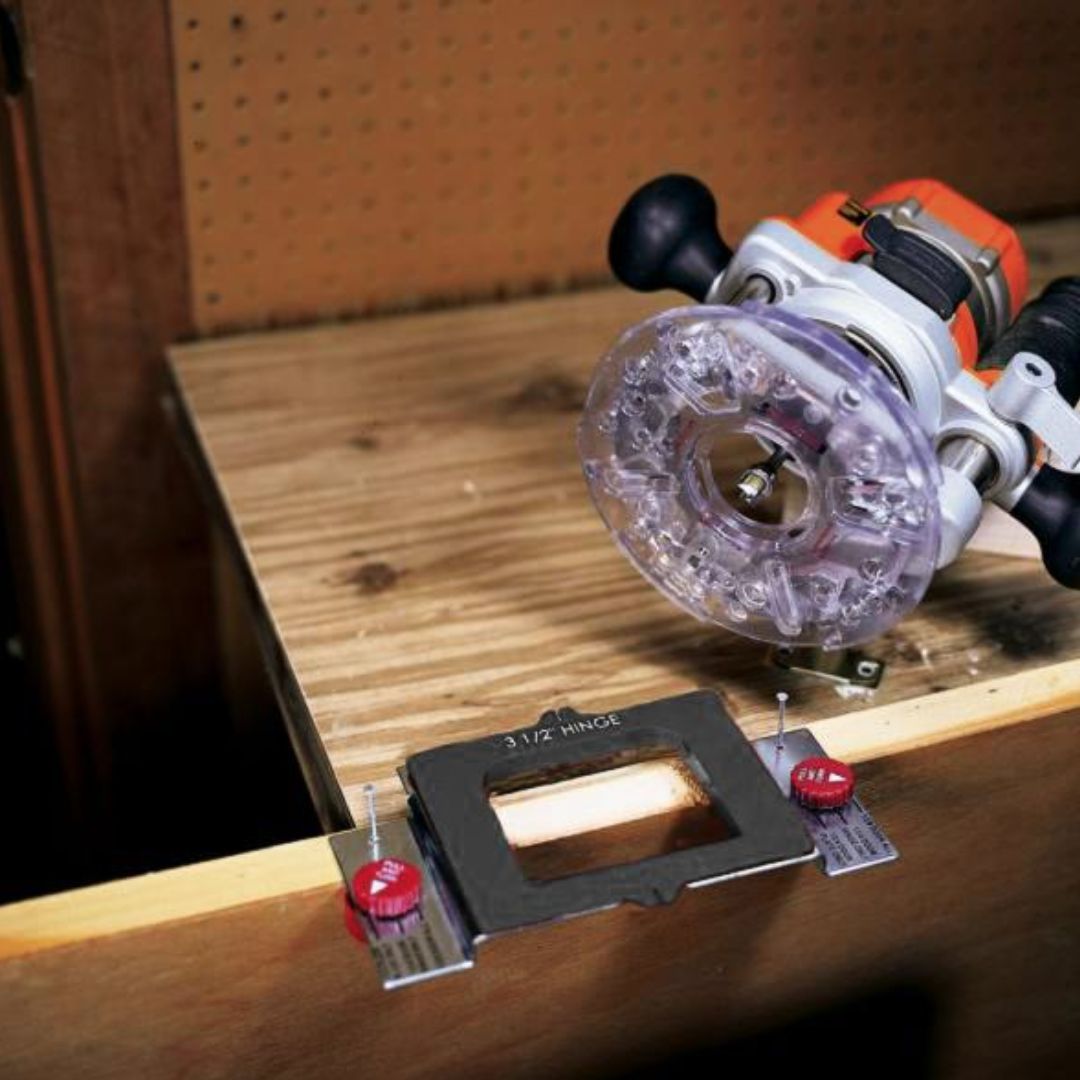

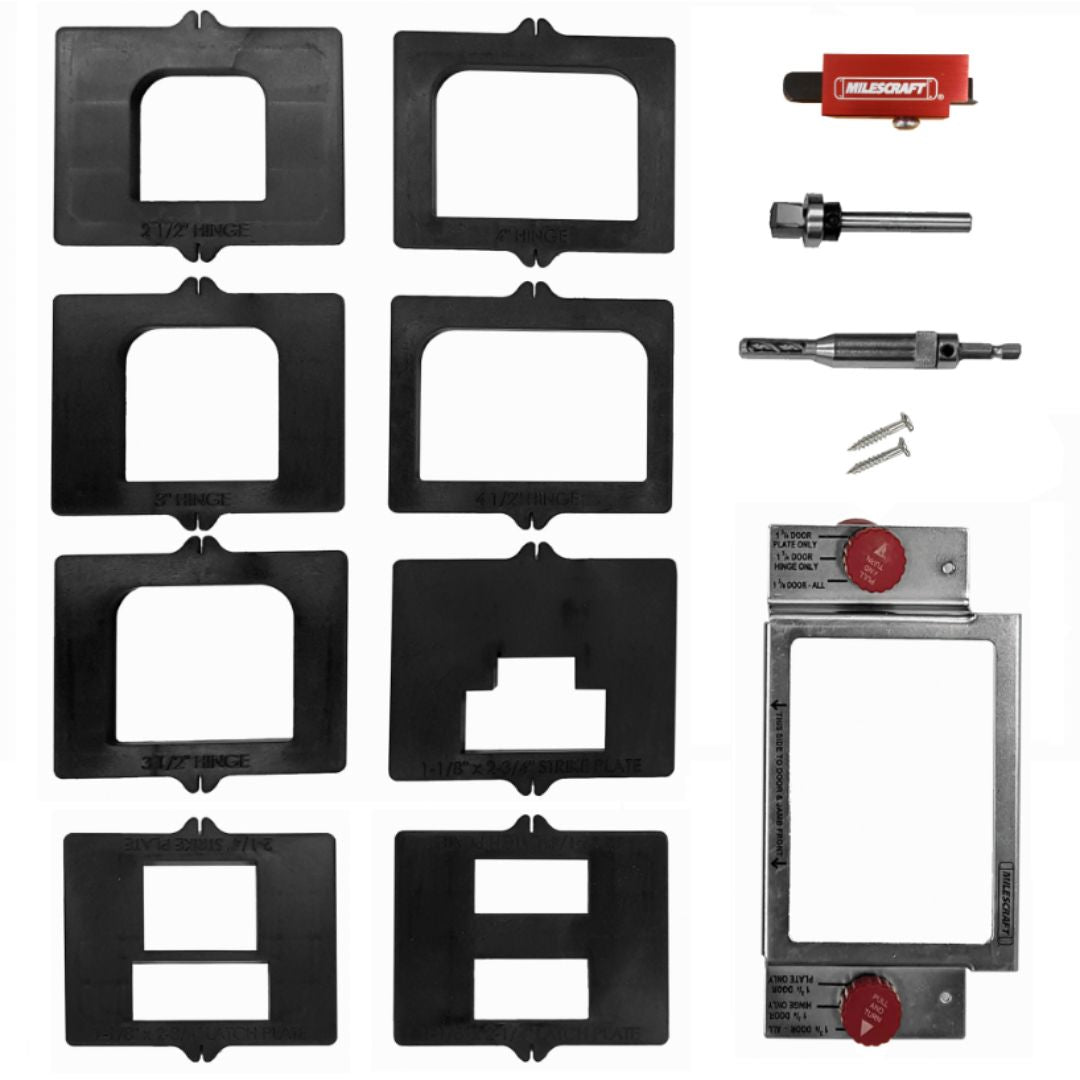

Professionally hang doors with the HingeMate350™. This complete kit is great for installing new doors or replacing/repairing existing doors. The HingeMate350™ comes with all the tools, templates, and accessories required to route doors and jambs for hinge, strike, and latch plates.

Steel Template Frame

• Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
• Can be mounted to both the door and jamb

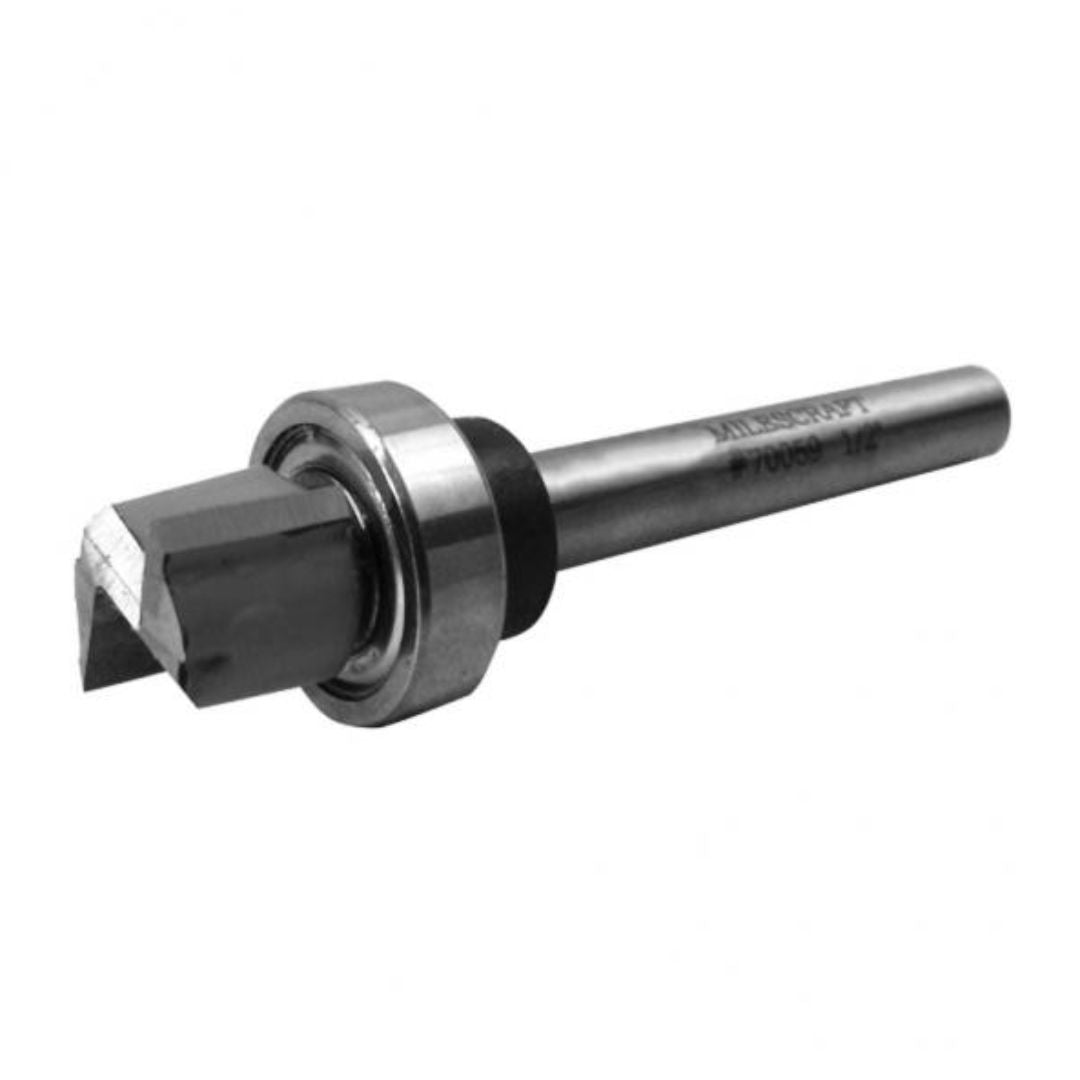

1/2” Router Bit Included

• Tip made of durable tungsten carbide
• Router bit with ball bearing eliminates the need for a bushing

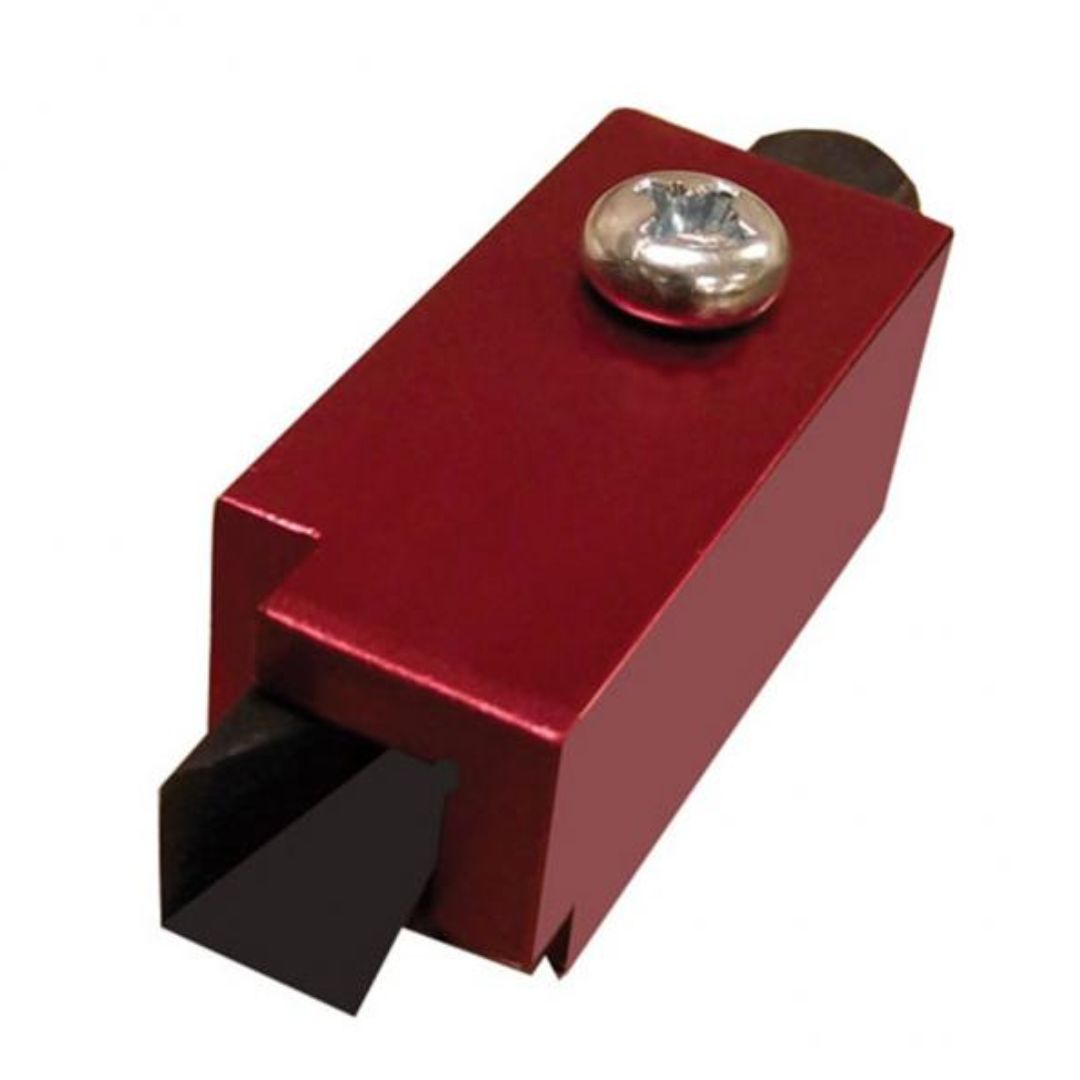

Corner Chisel Included

• Hardened steel, self-aligning chisel required to mortise 90° hinges, strikes and latches

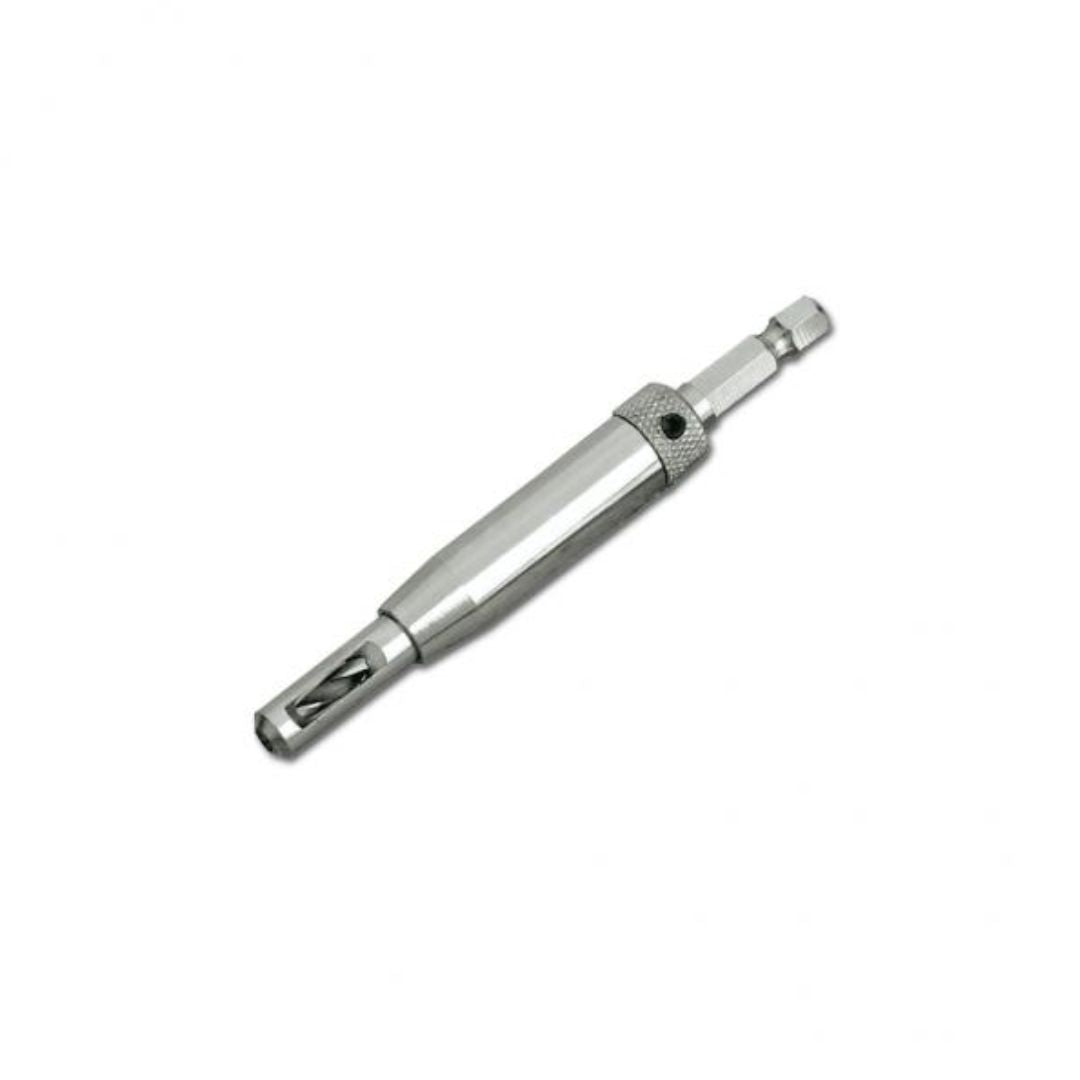

Hinge Bit Included

• Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit

Templates

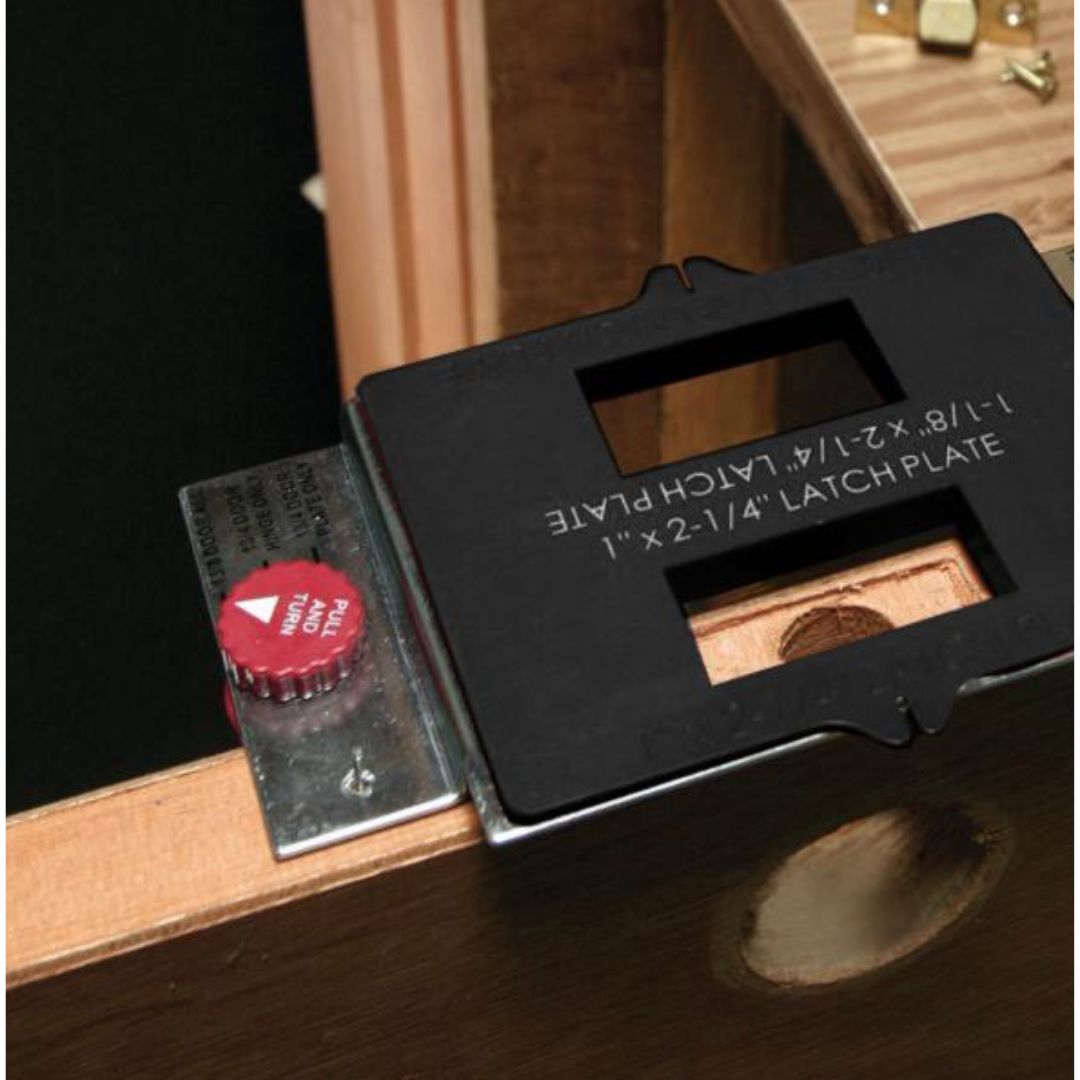

• Contains templates needed to rout hinge, strike plate, and latch plate mortises
• Rotate template to achieve 5/8” radius or 1/4″ radius

*Use Corner Chisel to achieve square corners.
