NOVA INFINITY ACCESSORY JAW – BOWL JAW SERIES #3
NOVA INFINITY ACCESSORY JAW – BOWL JAW SERIES #3

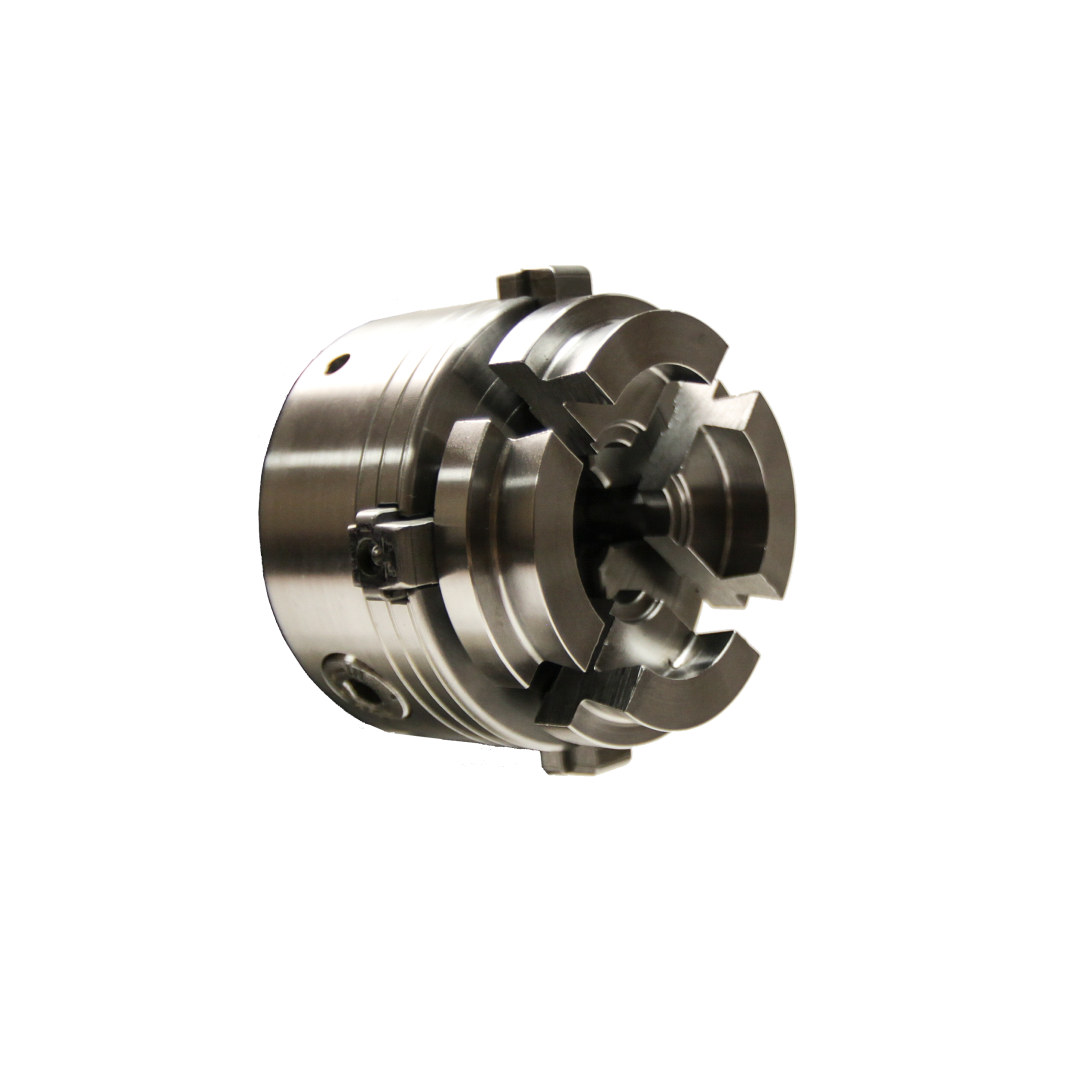

The NOVA Infinity Quick Change delivers fast and positive jaw changes which is much faster and less hassle than the screw fastening method with the older NOVA chuck models and other chuck brands. The NOVA Infinity Jaw Key and Infinity Jaws Slides are a precision cast metal amalgam 3 times the tensile strength of machine grade steel. Jaw Key positively taper locks into Jaw slide with an embedded dovetail design. A stronger and more rigid bond than the original NOVA Screw on Jaws. The Infinity Jaws are cam locked inline with the forward rotation of the chuck. They are safe to use at higher speeds and larger turning work. The Infinity Jaws are larger, more robust and rigid than the older jaw designs, providing enhanced workholding and turning possibilities. The Infinity Jaws use the well proven NOVA Dovetail Profile, designed to grip the wood firmly for added safety.
- USER MUST HAVE AN INFINITY CHUCK – THESE JAWS WILL NOT WORK WITH STANDARD G3 OR SUPERNOVA2 JAW SLIDES
The NOVA Infinity Bowl Jaws #3 are capable of holding:
Contracting Grip: Ranges from 46mm/1.811″- 53mm/2.087” (on the NOVA Precision Midi Chuck) through to 46mm/ 1.81″- 80mm/3.15″ (Titan II Chuck)
Expansion Grip: Ranges from 68mm/2.68″- 75mm/2.95″ (Precision Midi Chuck) through to 68mm/ 2.68″- 102mm/4.016″ (on the NOVA Titan II Chuck)
Jaw Spigot Length: 12.5mm/0.492″
The standard equipment includes:
4 x #2 Infinity Bowl Jaws Segments, 1 x Quick Start Instruction Manual.
