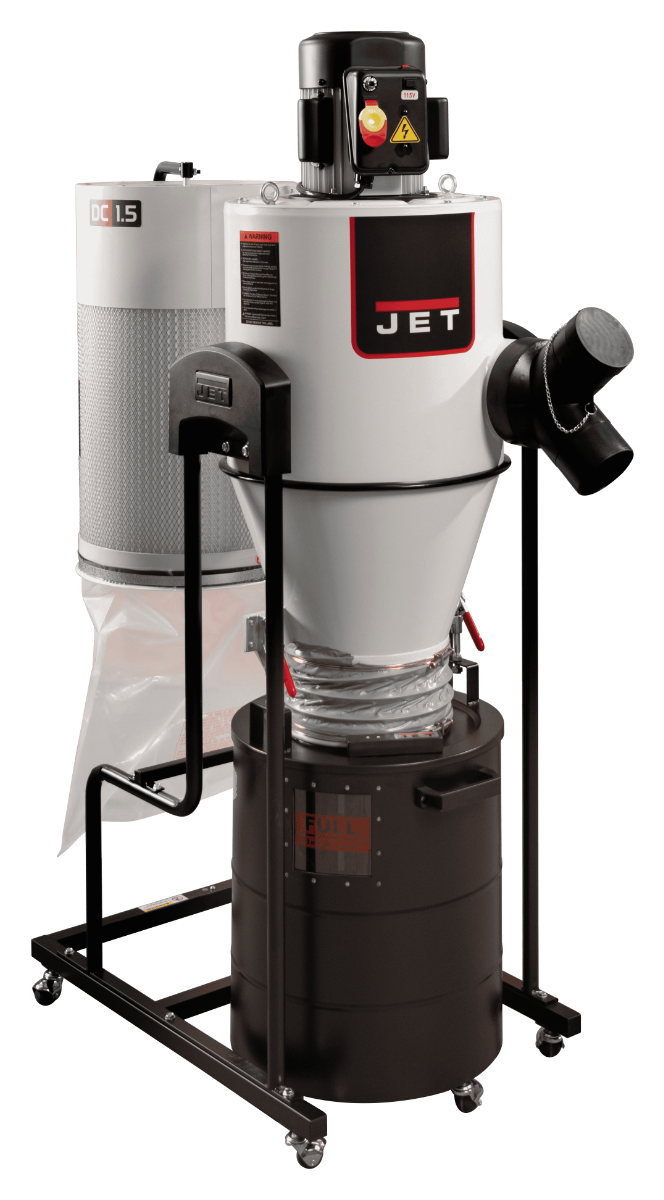

JCDC-1.5 hp Jet Cyclone Dust Collector

Key Features of the JCDC-1.5 hp Jet Cyclone Dust Collector (115v)

Specifications:

• Stock Number: JT9-717515
• Model Number: JCDC-1.5
• Motor Power: 1.5 HP
• Motor Amps: 14
• Motor Voltage: 115V (Prewired Voltage: 115V)
• Sound Rating: 75 dB
• Warranty: 5-Year

Performance Highlights:

• Filter Efficiency: 1 Micron
• MERV Value: 13
• Max. Static Pressure: 8.268 Wc.
• Static Pressure Loss:
  • EU Method: 2.677 Wc.
  • US Method: 1.535 Wc.

Design and Dimensions:

• 1-Hose Connection Diameter: 6 inches
• 2-Hoses Connection Diameter: 4 inches
• Canister Filter Length: 15-3/4 inches
• Collection Drum Capacity: 20 gallons
• Footprint (L x W): 47 x 22 inches
• Impeller Material: Steel

Weight and Build:

• Gross Weight: 175 lbs
• Net Weight: 132 lbs

Additional Information:

• Prop 65 Warning: Cancer and Reproductive Harm
• Sound Efficiency: Operates at a quiet 75 dB

This high-efficiency dust collector is built to handle demanding woodworking tasks while maintaining a compact footprint. Its robust steel impeller and advanced filtration system ensure optimal performance, making it a reliable choice for professional woodworkers.
