JWBS-20-5, 20" BANDSAW, 5HP, 23

Key Features of the JWBS-20-5, 20" BANDSAW, 5HP, 230V

• Blade Tracking Window: Provides a clear view of the blade during tracking for precise adjustments.
• Cast Iron Handwheels and Ergonomic Knobs: Designed for smooth and easy adjustments.
• Cast Iron Trunnion: Ensures maximum support and stability during operation.
• Dual 4" Dust Collection Ports: Conveniently located to capture dust and chips directly at the source.
• Blade Tension Scale: Easy-to-read scale visible through the upper door window.

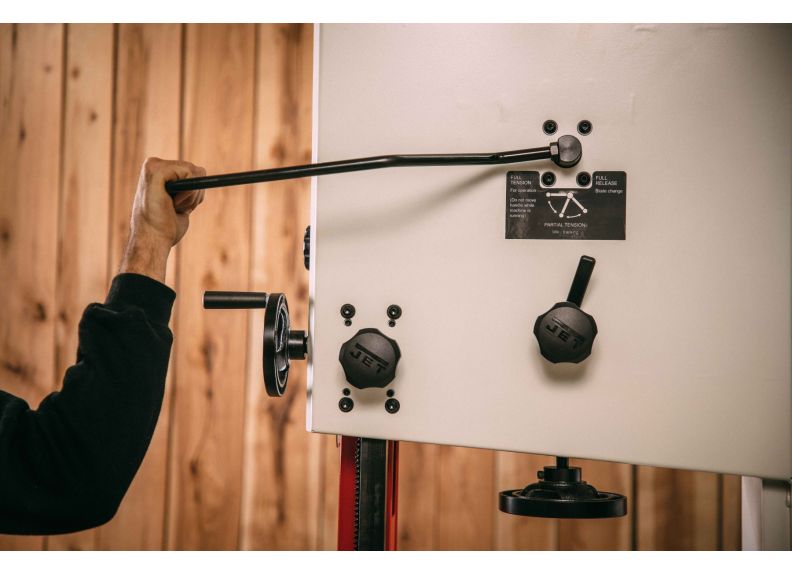

• Heavy-Duty Tensioning System: Features quick release and three settings—full tension, partial tension, and full release.
• Four-Sided Guide Post: Rigid design with rack and pinion adjustment for optimal blade support.
• Round Table Insert: Includes leveling screws for precise adjustments.
• Single Knob Adjustment: Simplifies the blade tracking process.

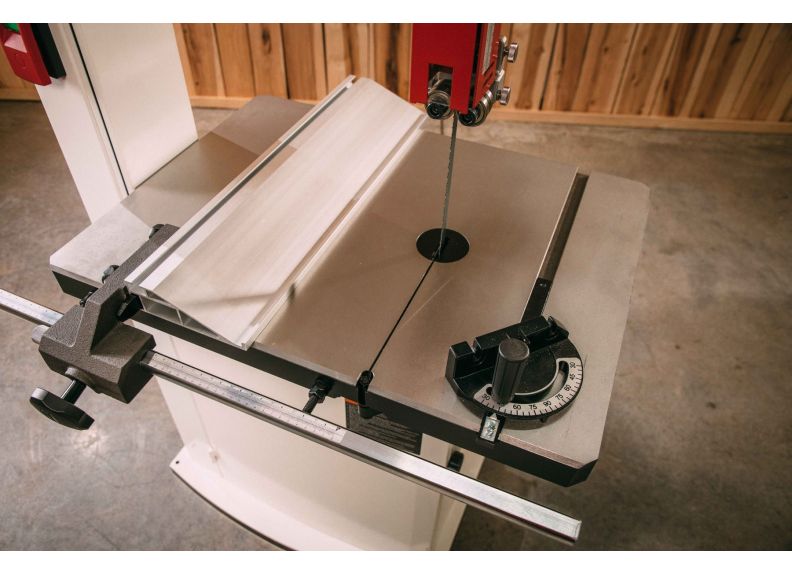

• Tilting Table: Tilts 5° left and 45° right to accommodate a wide variety of cuts.

Specifications

• Stock Number: JT9-714850
• Model Number: JWBS-20-5
• Warranty: 5 Year
• Band Saw Size/Wheel Diameter: 20-1/4 inches
• Minimum Saw Blade Width: 1/8 inch
• Cutting Capacity Height: 16 inches
• Cutting Capacity Width: 20 inches
• Dust Collection Minimum CFM Required: 400 CFM
• Table Size (L x W): 27-1/4 x 20 x 1-5/8 inches
• Motor Power: 5 HP
• Recommended Circuit Size: 40 Amps
• Motor Amps: 22
• Table Height from Floor: 37 inches
• Prop 65 Warning: Cancer and Reproductive Harm
• Net Weight: 616 lbs
• Gross Weight: 688 lbs

This bandsaw is designed for precision, durability, and ease of use, making it an essential tool for woodworking professionals.
