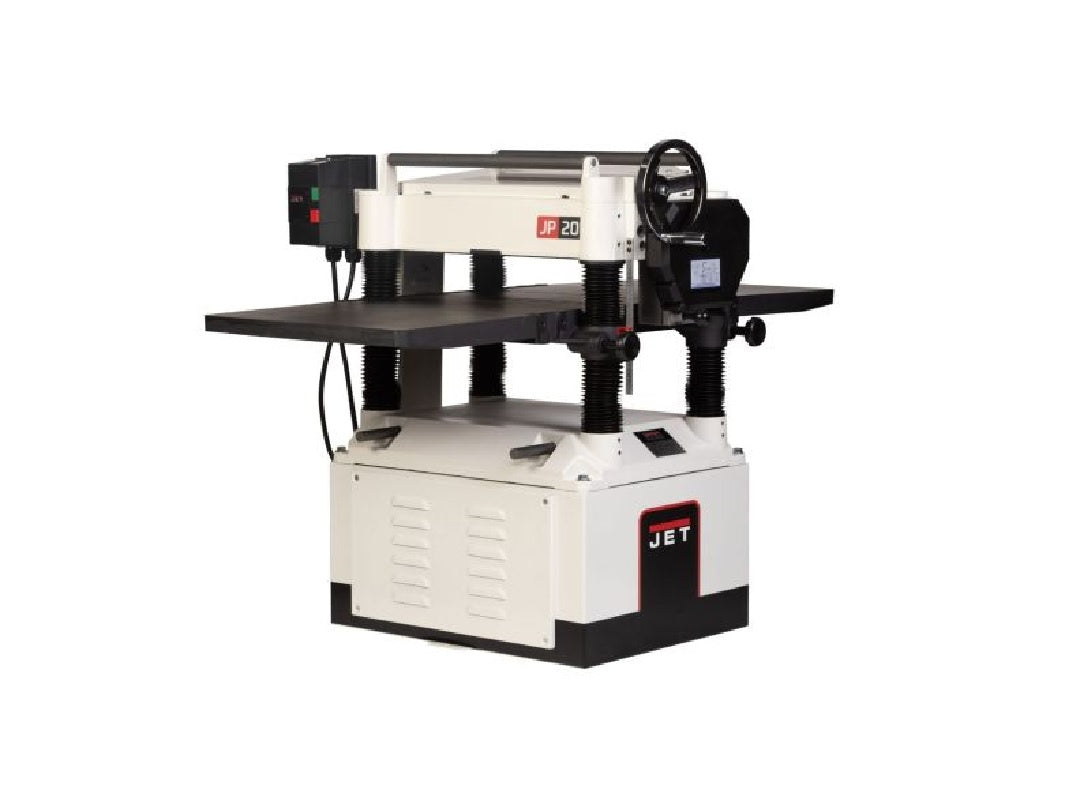

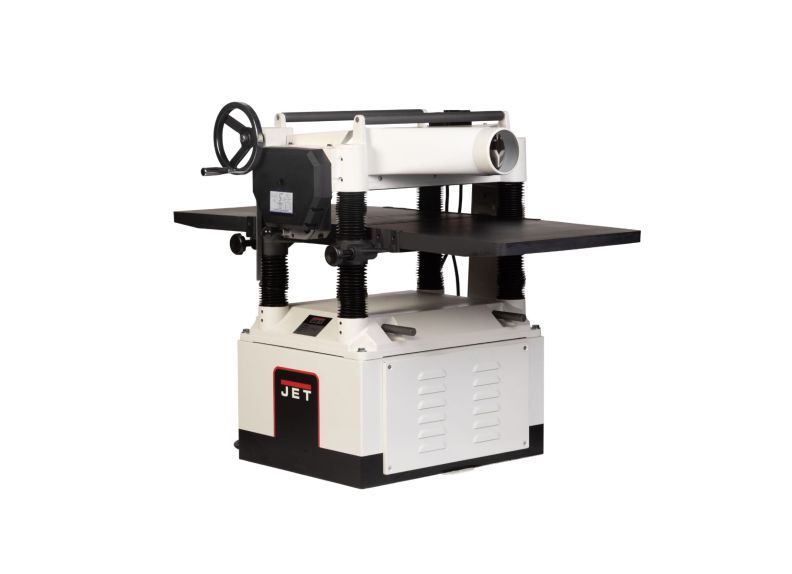

JWP-208HH-BLK, JET Black 20" Helical Head Planer

JWP-208HH-BLK JET Black 20" Helical Head Planer. Designed for precision and ease, this planer features a 20” planing width and a JET Black performance-coated cast iron table that enhances visibility, reduces friction, and eliminates the need for waxing or polishing. The innovative two-speed gearbox with an automatic chain tensioner offers effortless, accurate feed rate adjustments. Powered by a robust 5 HP induction motor, it pairs seamlessly with the helical insert cutterhead equipped with 68 staggered carbide knives for an exceptional finish and quieter operation. Elevate your woodworking with the unmatched performance and durability of this essential tool.

Key Features of the JWP-208HH-BLK, JET Black 20" Helical Head Planer

Technical Specifications:

• Stock Number: JT1-1374
• Model Number: JWP-208HH-BLK
• Motor Power: 5 HP
• Motor Voltage: 230V
• Motor Amps: 20
• Motor Phase: Single

Cutterhead Details:

• Type of Cutterhead: Helical Head
• Cutterhead Diameter: 3-7/32 inches
• Cutterhead Speed: 5000 RPM
• Number of Knives: 68

Planing Capacity:

• Maximum Planing Width: 20 inches
• Maximum Planing Thickness: 8 inches
• Maximum Full Width Depth of Cut: 3/32 inches
• Minimum Planing Length: 6-3/4 inches

Feed and Table:

• Feed Rate: 24/31 FPM
• Table Size (L x W): 25-3/4 x 20 inches

Dust Collection:

• Dust Collection Minimum CFM Required: 400 CFM
• Dust Port Outside Diameter: 5 inches

Blade Dimensions:

• Knife Size (L x W x T): 15 x 15 x 2.5

Weight and Durability:

• Net Weight: 640 lbs
• Gross Weight: 765 lbs
• Warranty: 5 Years

Safety Information:

• Prop 65 Warning: Cancer and Reproductive Harm

This high-performance planer is designed to deliver precision and reliability, making it an excellent choice for woodworking professionals. Its helical head cutter ensures a smooth, high-quality finish, while the robust motor and wide planing capacity handle demanding tasks with ease. Backed by a 5-year warranty, this planer combines durability with exceptional performance.
