Back in Stock for immediate shipment

The Rail-Master is the ultimate coping sled jig for tenoning the ends of door rails for 5 piece door system. 800 pounds of clamping force. Full air floation 1 inch thick annodized base. Adjustale miter bar locations for best fit on most shapers. Can be used without miter bar with by using straight template on shaper fence. Left and right blow out board locations. Single thumb lever activates flotation and clamping cylinders. Variable floatation regulation. Constructed of annodized aircraft grade aluminum for a heavy duty assembly for years of service.

Floats on a cushion of air for smooth, easy operation
Use with material thickness from 5/8″ to 2″ thick
Proven design for years of trouble free use
Variable flotation regulation
Miter bar slides along Miter slot for coping cuts
Removable miter bar for custom free-floating cuts
Accepts templates for straight and custom curved and angled cuts
Slack adjustment feature on miter bar
Single thumb-lever activation
Square grid pattern in base to assist in custom cuts
Constructed of aircraft-grade aluminum, with anodized finish
Right or Left hand operation
Accepts blowout board for splinter-free cuts
2 CFM @ 90 PSI
800 ft/lbs holding

Thickness Capacity: 3/4″ to 2″

Holding Pressure: 800 ft/lbs

CFM Requirements: 2 CFM @ 90 PSI

Available in 11″ and 16″ versions

11″ Version

Typically used for cabinet-door manufacturing
11.5" width capacity
Adjustable from 5/8" to 2" thickness capacity

16″ Version

Typically used for millwork and entry door construction
16" widith capacity
Adjustable from 5/8" to 2" thickness capacity

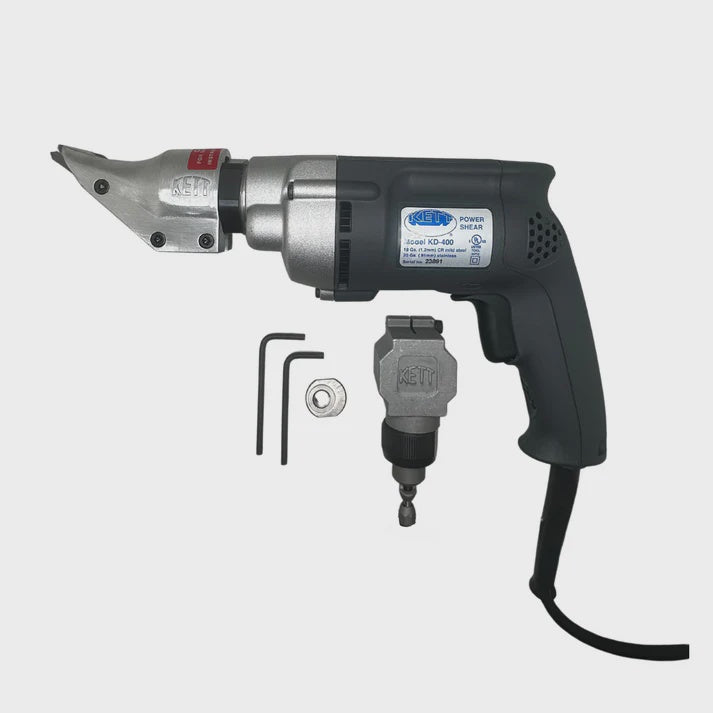

Kit #210 - 18 Gauge Nibbler/Shear Combo Kit
