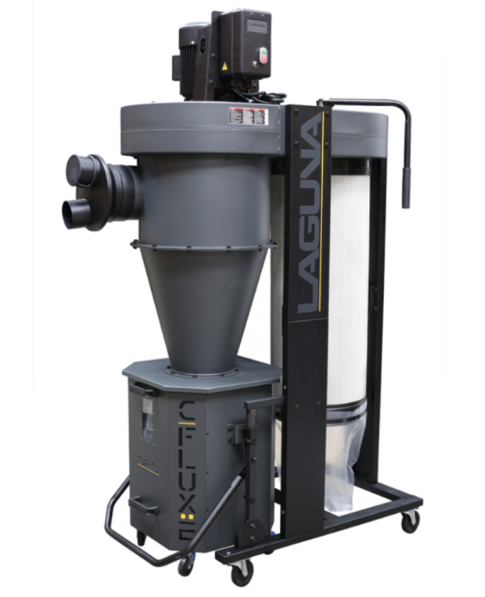

Laguna C-Flux 2 Gen1 Cyclone Dust Collector

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance. The c|flux:1 comes standard with a 1 micron canister providing filtration of 99.7% of particles 1 micron or larger & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard. he c|flux series can be equipped with an optional auto clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a drop in air pressure indicating the filter is getting clogged and automatically activates the cleaning procedure. Ingenious lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

Specifications:

• Motor HP 2 HP
• Phase 1
• Voltage 220V
• Amps 18.8 Amps
• Hertz 60
• Plug No
• RPM 3450
• Switch Type Radio Frequency Remote switch – Black Box
• Hand held remote control HF
• Real CFM 1166
• Nominal CFM 1740
• Max Static Pressure (inches of water) 9.3″
• Impeller/Fan Size 14.5″
• Impeller Material Steel
• Impeller Type Radial Fin
• Balanced To: ISO 1940
• Inlet Diameters 6″ by 4″ x 2 ports
• Drum Capacity 33 Gal.
• Octagon Drum Metal drum insert
• Drum collection bag (Dia. x L) Plastic bag (Ø610 x 950mmL)
• Canister Filter type 1 Micron
• Filtration Efficiency 0.2-2micron @ 99.97%
• MERV Rating 12
• Canister diameter Ø400mm (15.75″)
• Canister Length 900mm (35.43″)
• Filter Surface Area 9.5m² 109ft²
• Canister Cleaning Manual Handle Crank
• Canister filter lower dust collection Plastic bag (Ø400 x 600mmL)
• Base with perforated sheet across canister floor N/A
• Wheels 4″ Flat Caster
• US/CSA Approved Yes
• Decibel Reading 88 d B(A) (@9.8ft)
• Machine weight 134kgs 296Lbs
• Shipping weight 165kgs 364Lbs
• Assembled Dimensions (L x W x H) 46″ x 27″ x 79″ 1178 x 690 x 2025 mm
