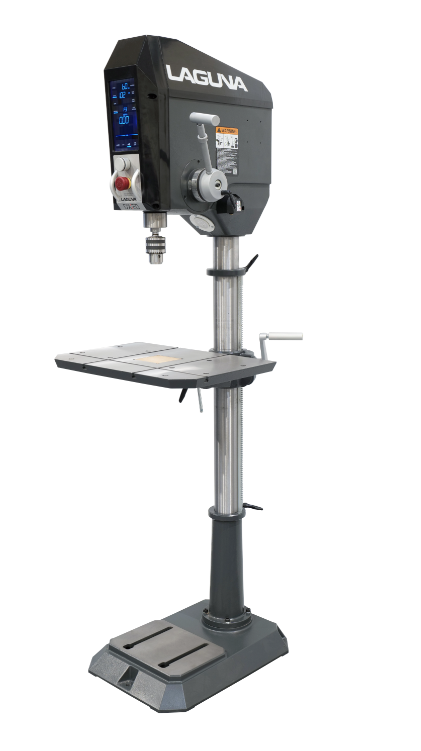

Laguna DX:20 - 2.5hp 220V 20" Drill-Press w/ Touch Screen

Industrial Power Meets Modern Design

The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 2.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other materials.

The state-of-the-art Touch Screen Smart Panel features a unique blue LCD digital readout, providing real-time RPM, Load, and Quill Depth. This large 3-3/4" x 6-7/8" touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.

Key Features

• Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
• 2.5 hp PWM Motor: Provides constant torque with forward and reverse functions.
• Auto-Start Function: Automatically starts and stops with the movement of the quill.
• Precision Depth Control: Electronic depth setting for precise adjustments.

Specifications

Motor

• DC Brushed
• PWM (Pulse Width Modulation)

Power

• 2.5 HP
• 15 AMP

Voltage

• 220 Volt

Frequency

• 60 Hz

Wheel Speed

• Electronic Variable: 60 – 3600 RPM (Forward / Reverse)

Power Transfer

• Poly-groove drive belt

Machine Control

• LCD Touch Screen Smart Panel

Base Size

• 22.83" x 16.92"

Column Diameter

• 3.15" (80 mm)

Weight

• Net Weight: 304 lbs. (138 kg)
• Gross Weight: 326 lbs. (148 kg)

Packing Dimensions

• 72.5" x 28.5" x 20"
• 1840 x 725 x 406 mm

Memory Settings

• 5 Memory Settings

Swing

• 20" (1830 mm)

Spindle Taper

• MT2

Quill

• 6" Travel – 2.6" Diameter

Chuck Capacity

• 5/64 – 5/8" (2 – 16 mm)

Table

• 15" x 22"
• 3 T-slots
• 10 Clamp Holes

Table Movement

• +/- 90 Degree Tilt
• 360 Degree Swivel around column

Spindle to Table

• 30" Max

Spindle to Base

• 49.5" Max

Optional Accessories

• Work clamps for T-slot
• Quick clamps for Clamp Holes
• Bolt-on Work Lamps
