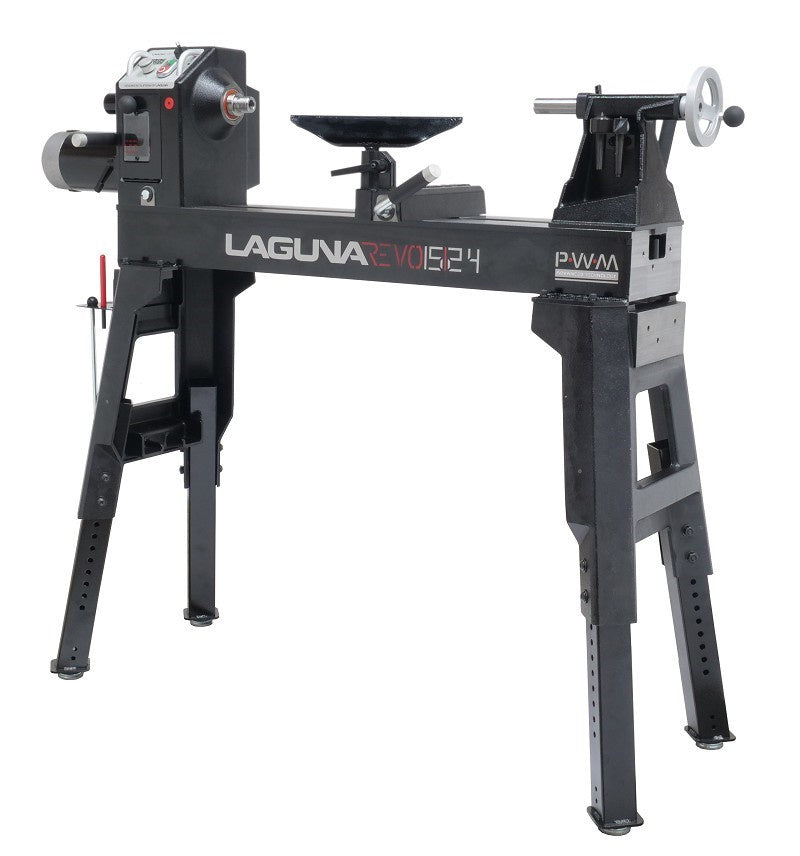

Laguna REVO 15|24 110v Lathe

With the launch of the Revo 15|24, Laguna fills the gap between the Revo 12|16 and the legendary Revo 18|36, offering space-constrained users more power and capacity.

Features of the Revo 15|24:

• World-class fit and finish Laguna is known for.
• Sliding headstock for ergonomic outboard bowl turning.
• Infinite electronic variable speed from 50 - 4200 RPM with a 3-step pulley.
• Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation.
• Adjustable-height legs for a more ergonomic working position tailored to individual needs.
• Steel bed provides strength, stability, and a surface that the banjo glides across smoothly.
• Patent-pending Precise Point, a new feature that allows dialing in the tailstock quill to meet the headstock center.

Optional Accessories:

• Wheel system for easy movement around the shop (ALAREVO1524 Wheel System).
• 20” steel extension for increased spindle or turning capacity (ALAREVO1524 EXTENSION).
• Brand new LED light featuring Chameleon hot/cold configuration for perfect work lighting (ALEDLATHE).

Specifications:

• Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
• Motor: Permanent Magnet DC, 2150 RPM.
• PWM: Pulse Width Module Speed Control.
• Recommended Breaker: 15 Amp.
• CSA C/US: 256540.
• Spring Loaded Spindle Lock.
• Swing over Bed: 15-1/2”.
• Swing over Banjo: 11-3/32”.
• Max. Outboard Swing: 25” (with optional accessory).
• Tool-Rest Post Size: 1”.
• Tool-Rest Length: 12”.
• Spindle Taper: MT#2.
• RPM High: 650-4200.
• RPM Mid: 325-2100.
• RPM Low: 50-650.
• Tailstock Quill: 4 ½”, Self-Ejecting.
• Floor to Spindle Center Low: 36.4”.
• Floor to Spindle Center High: 51.4”.
• Floor to Bed Min.: 28.6”.
• Floor to Bed Max.: 43.6”.
• Front Bearing: TPI Taiwan 6206LLU.
• Rear Bearing: TPI Taiwan 6205LLU.
• Spindle Index #: 24 w/ Lock.
• Distance Between Centers: 24”.
• Headstock/Tailstock Through-Bore: 3/8”.
• Headstock Travel: Full Length.
• Tailstock Storage of Centers.
• Accepts Vacuum Chuck: No.
• Spindle Size: 1 ¼” X 8TPI RH.
• Floor Space: W 60” D 22” H 56”.
• Box Dimensions: L 52” W 22” H 22”.
• Weight Net/Ship: 288/302 Lbs.
