Revolution Miter Gauge Systainer

Stacks and Links Easily
The Revolution Miter Gauge Systainer stacks and links with a simple one-handed twist of the latch. It pairs seamlessly with other SawStop Systainers and is also compatible with any other brand of Systainers you may own.

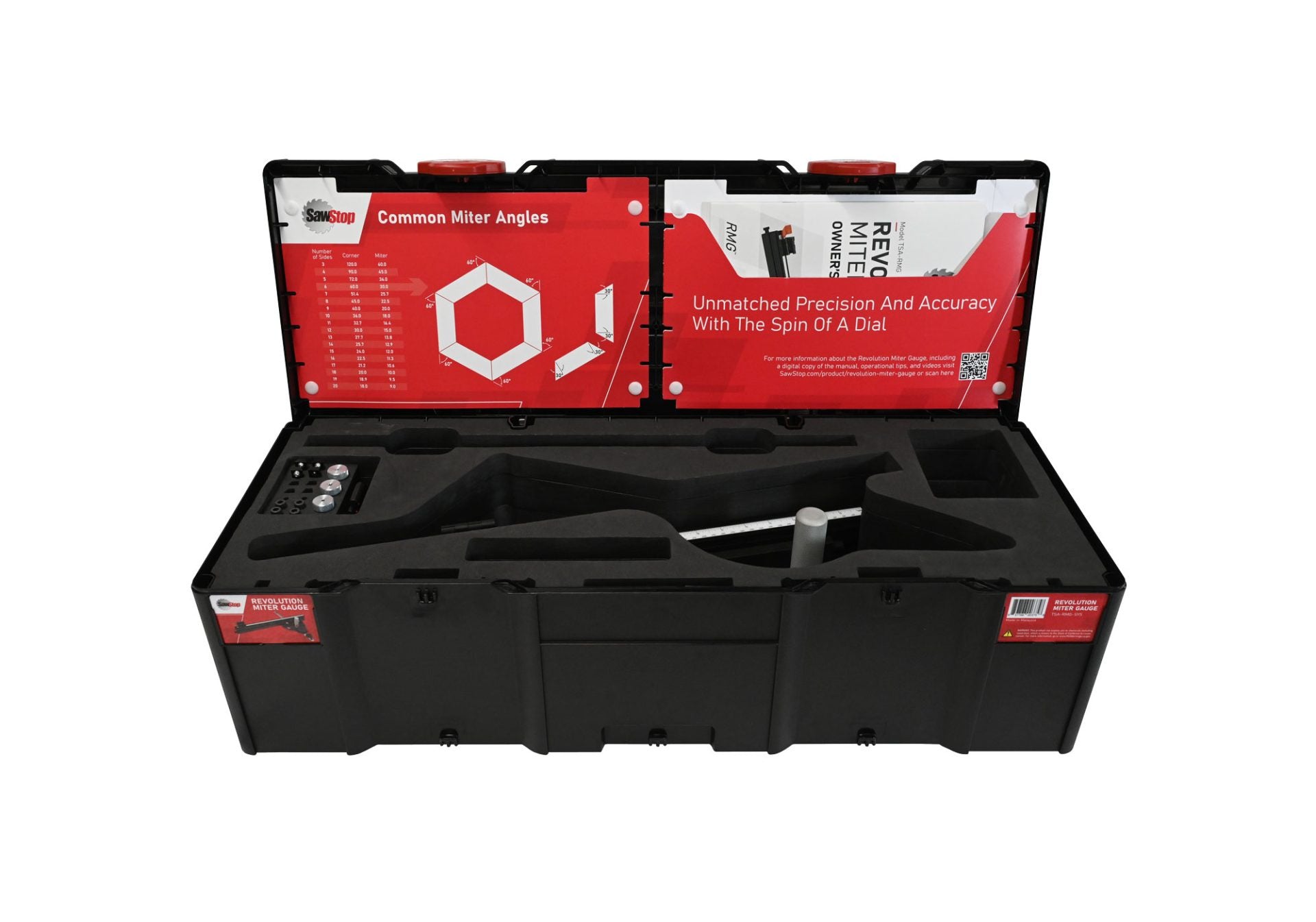

Secure Storage and Organization
No need to worry about losing screws and wedges! Simply store them in the custom cutouts in the foam insert for perfect security and organization. There’s also space for a sacrificial fence that you can create.

Precise Angle Adjustments
The Revolution Miter Gauge angle dial features preset increments of 1°, 1/2°, 1/4°, or 1/10° with tactile feedback. This allows you to feel your desired angle click into place, making angle adjustments reliably accurate, quick, and easy. Common miter angles 0°, 22-1/2°, 30°, and 45° are noted and can be set quickly.

Sliding Wedge System
The sliding wedge system simplifies fence attachments and repeatable stops. The reversible, telescoping fence works with the miter gauge in either the left or right miter slots with equal accuracy and ease of use.

Repeatable Cuts and Fine Adjustments
Make repeatable cuts up to 37-1/2" in length using the tool-free articulating flip stop—with or without a sacrificial fence. A micro-adjuster lets you fine-tune a crosscut length without repositioning the flip stop. The flip stop includes mounting holes for adding jigs or locking into the wedge system.

Heavy-Duty Construction
Built to last, the miter gauge features heavy-duty construction, including a steel miter plate manufactured with machine tolerances of <.001” for exceptional precision.

Level and Adjustable Miter Bar
A washer at the front end of the miter bar fits into 3/8” x 3/4” T-shaped miter slots, keeping the miter gauge level when the head is pulled off the table for wide crosscuts. The washer can also be removed for use in non-T-shaped miter slots. Additionally, the miter bar includes three adjustable pucks to eliminate side-to-side play in the miter slot.

Angle Chart for Multi-Sided Projects
For unusual multi-sided projects, use the chart in the lid that provides angle settings for projects with up to 20 sides. Set your Revolution Miter Gauge to the corresponding angle to cut all components with perfect precision.
