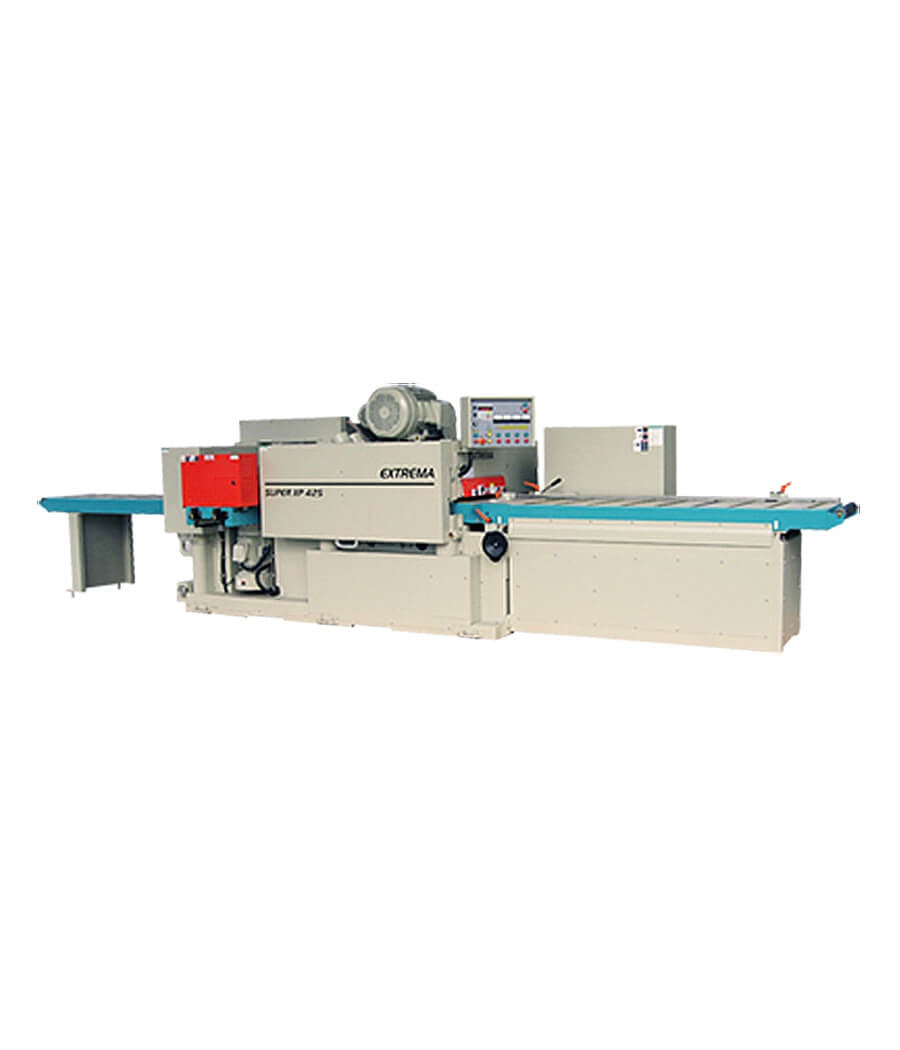

Super XP Series 25" 4-Sided Planer

• 50 HP Top, 40HP Bottom
• 15 HP side Motor
• 6000 RPM Cutter heads

Details:

• 50 HP Top, 40HP Bottom
• 15 HP side Motor
• 6000 RPM Cutter heads
• Air Loaded Sectional feed roller
• Digital PLC Thickness Controller
• Long infeed and outfeed tables
• Moulder Style Side heads
• Carden Shaft drive System
• Segmented Roller Feed System

Specifications:

Horsepower: 50/40/15/15HP

Width: 25"

Top Motor: 50 HP

Bottom Motor: 40 HP

Left Motor: 15 HP

Right Motor: 15 HP

Elevation Motor: 2 HP

Feed Motor: 5 HP

Max Thickness: 12"

Min Length: 28"

Cutterhead RPM: 6000

Top Cutter Access: Super Slide

Bottom Cutter Access: Super Slide

Side Cutter Access: Moulder Style

Side Spindle Movement: Manual Screw

Infeed Table Length: 90"

Outfeed Table Length: 72"

Disc Brakes: Yes

Feed System: 39 - 130 ft/min

AMPS (220V/440V): 311A / 156A
