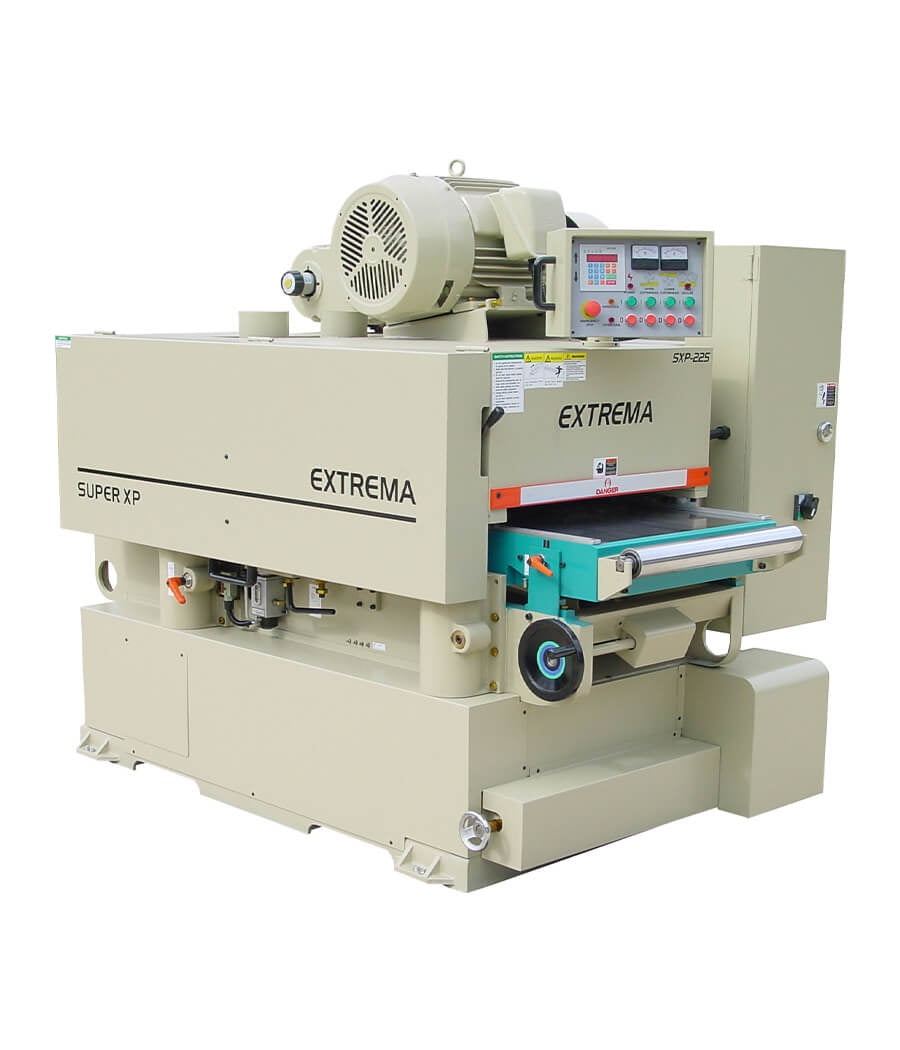

Super XP Series 25" Double Sided Planer

Extrema’s Super XP Planer has a feed speed of 20-130 ft/min., a shaftdrive system, segmented feed rollers and much more.

Details:

Extrema’s Super XP Planer has a feed speed of 20-130 ft/min., a shaftdrive system, segmented feed rollers, 12 sets of feed rollers, jointer style infeed, patented top and bottom Super Slide out cutterheads, pneumatically loaded hold down rolls, a hard chrome plated bed, optinal long infeed table, disc brakes, massive four post elevation system and is available with Vector, Stealth, Mach or Straight Knife cutterheads.

• Patented top and bottom Super Slide
  slide out cutterheads
• Segmented pressure roller conforms to wood
  variances without sacrificing strength and durability
• Jointer style infeed
• Feed speeds 39 – 130 ft/min
• Digital PLC thickness controller
• 6000 RPM cutterheads
• Pneumatically loaded hold down rollers
• Long lasting hard chrome plated bed for
  increased durability and smooth feeding
• Durable and reliable shaft drive system
• Powered top and bottom feed rollers provide
  excellent traction for larger material
• The only planer on the market with disc brakes
• Available with VECTOR, MACH, STEALTH or
  straight knife cutterheads
• Massive 4 post elevation system
• Wye-delta soft start
• Centralized lubrication system
• Amp load meters
• Auto thickness device for precise thickness
  positioning
• Overload interrupt detection
• Elevation interlock prevents cutterhead from
  moving while machine is in operation
• 12 sets of powered feed rollers for positive
  feeding traction

Powerful and Flexible Feed System
High feed speeds and planing capacity make sectional feed roller, pneumatic pressure adjustment, and shaft drive bed rollers a most. Shafts provide years of trouble free performance and pneumatically loaded feed rollers allow adjustments to be made for each application. Segmented feed rollers enable the planer to take varying thickness of material.

Specifications:

Horsepower: 50 / 40 HP

Voltage: 230V / 460V

Phase(s): 3 PH

Width: 25"

Top Motor: 50 HP

Bottom Motor: 40 HP

Elevation Motor: 2 HP

Feed Motor: 5 HP

Max Thickness: 8"

Min Thickness: 3/8"

Min Stock Length: 15-1/2"

Cutterhead RPM: 6000

Top Cutter Access: Super Slide

Bottom Cutter Access: Super Slide

Disc Brakes: Yes

Feed System: Seg. Roller

Drive System: Shaft

Feed Speed: 39 - 130 ft/min

CFM Requirements: 3000

AMPS (220V/440V): 238A / 119A

Weight: 9610 lbs
