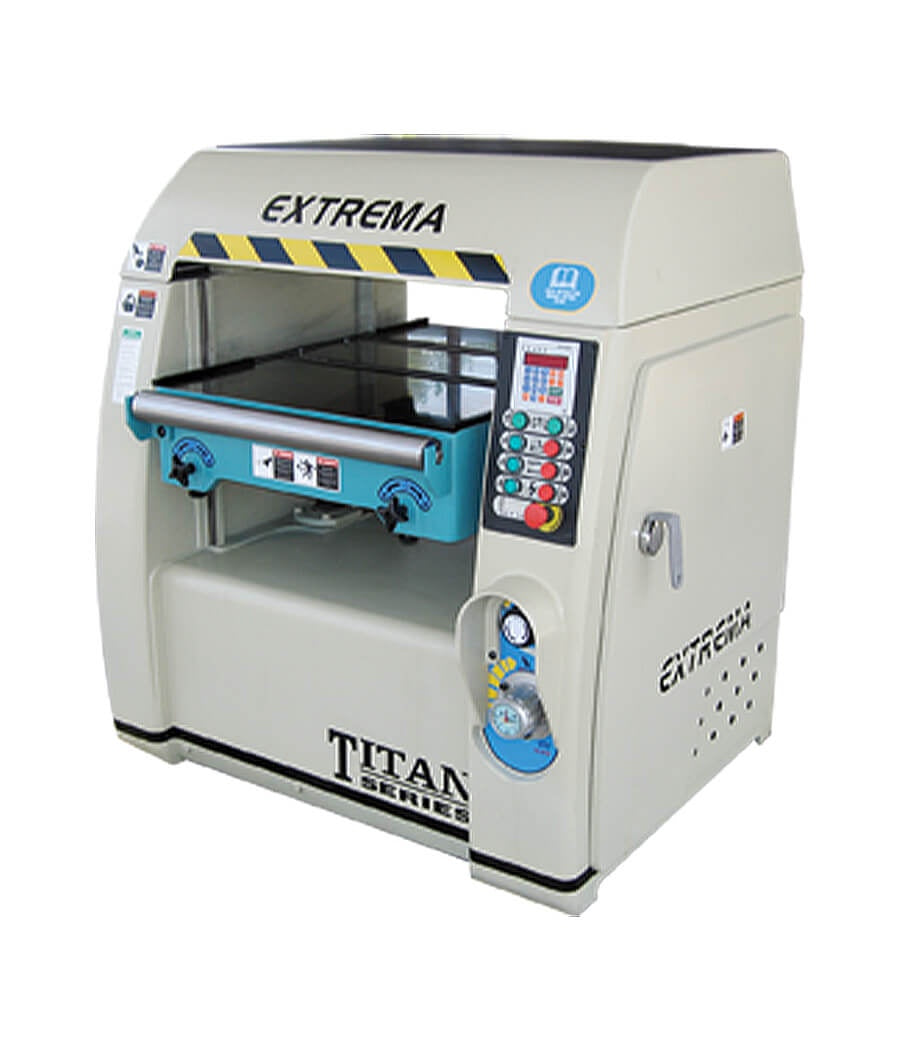

Titan XP Series 26" Planer

Extrema’s Titan Series XP-126T comes in 24″, 26″, 30″ & 40″ width. The XP-126T is available with VECTOR Cutterhead, infeed roller, heavy duty internal drive system, and a PLC controller.

Details:

Extrema’s Titan Series XP-126T comes in 24″, 26″, 30″ & 40″ width. The XP-126T is available with VECTOR Cutterhead, infeed roller, heavy duty internal drive system, and a PLC controller.

• Available with VECTOR, STEALTH, MACH or straight knife cutter heads
• 11-3/4” thickness capacity
• High Horsepowers: 20 HP & 15 HP
• 6000 RPM cutterhead
• Powered top and bottom bed rollers
• Motorized table elevation
• Digital thickness controller
• Solid cast-iron construction
• Triple v-belts
• Sectional chipbreakers
• Externally adjustable front and rear bed rollers
• Sound deadening enclosure
• Available 208-230V or 460V
• Powered top and bottom feed rollers

Specifications:

Horsepower: 20 HP

Voltage: 230V / 460V

Phase(s): 3 PH

Width: 26"

Main Horsepower: 20 HP

Feed Horsepower: 1 HP

Elevator Horsepower: 0.5 HP

Max Thickness: 11.75"

Min Thickness: 0.375"

Max Cut: 0.375"

Min Length: 10.5"

Cutterhead RPM: 6000

Feed Speed: 20-75 ft/min

CFM Requirements: 1100

Thickness Adjustment: PLC Controller

Bed Roller Adjustment: External

Power Bed Rollers: Top and Bottomc

AMPS (230V/460V): 52A / 26A

Weight: 2675 lbs
