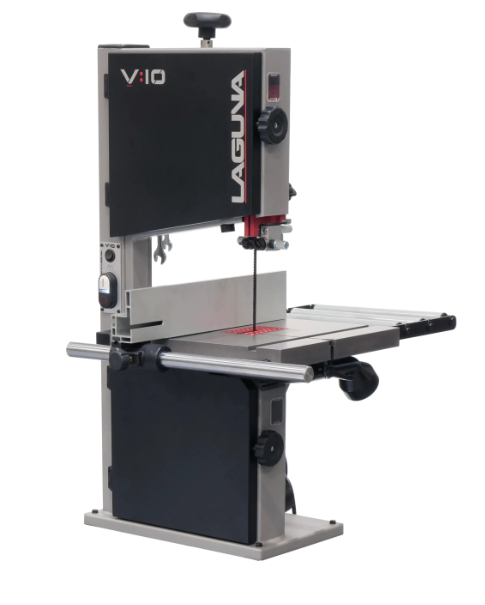

Laguna V|10 Bandsaw

The all-new Laguna V:10 bandsaw leads the competition with many Best-In-Class features for 10” bandsaws.

Our smallest bandsaw is loaded with innovative features normally found in larger machines. These features, along with the superior performance of the V:10, make it the best value for the price in 10” bandsaws.

Best-In-Class Features:

• Cast Iron Wheels – Only 10" woodworking bandsaw on the market with this feature.
• 1 HP Induction Motor – Delivers consistent power for demanding cuts.
• 5.75” Resaw Capacity – Best for 10” bandsaw.
• Advanced Dust Collection – Dual dust ports including thru-table extraction for cleaner operation.
• Integrated Lighting – Built-in LED work light with 120V outlet for optional auxiliary lighting.

Additional Features:

• Quick-release magnetic under-table dust port.
• Perforated throat-plate insert with leveling screws.
• Roller bearing blade guides with micro-adjustment.
• Hi/Low fence with solid steel rail.
• Dual-blade tracking windows.
• Quick-release blade tension lever.
• Dual blade speeds.

Specifications:

Motor: 1 HP Induction Motor

Power: 120 Volt 60 Hz

Flywheel Size: 10” Diameter

Resaw Height: 5.75” (146 mm)

Throat: 9-5/8” (245 mm)

Blade Length: 70-1/2” (1791 mm)

Blade Width: Min. 1/8” - Max 1/2” (3.18 - 12.7 mm)

Blade Speed: 1515 High / 3280 Low Ft/Min (462 / 1000 m/min)

Table Size: 13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)

Table Tilt: Left -5° / Right 45°

Table Height: 14-1/2” (368 mm) (without optional stand)

Dust Port Diameter: 2-1/2” x 2 (64 mm)

Base Size: 9-1/4” x 15-3/4” (235 x 400 mm)

Overall Size: 22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH

Included: 3/8” Blade

Optional Equipment:

• Adjustable Height Stand - 110001
• Roller Outfeed Table - 110004
• Caster Set - 110002
• 3-Blade Combo Pack - 110003
• Auxiliary LED Work Light – ALEDSPINE
• Magnetic Base for Auxiliary Lamp - ALED-STRONGMAG
• Resaw King Blade - BBRK-12-7012
