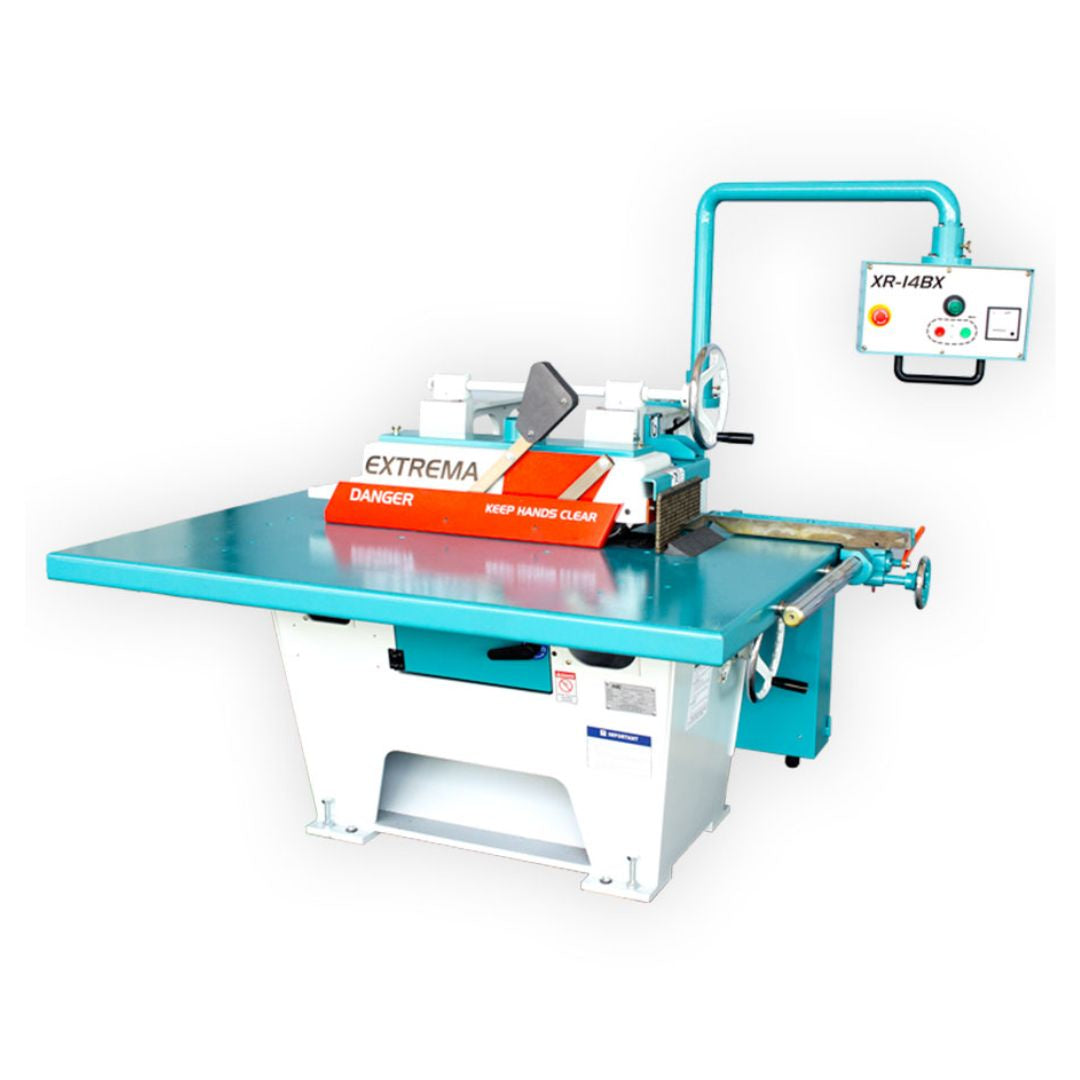

14" Straightline Rip Saw

The 14BX Series of straightline rip saws lead the way in innovation and value for for medium to large size woodworking facilities. With the bottom blade cutting design, they are among the safest in the industry. With the full heat-treated cast-steel chain and race, they are unmatched in durability.

Deatils:

• 15 HP Main motor
• Huge 45″ x 61″ table available

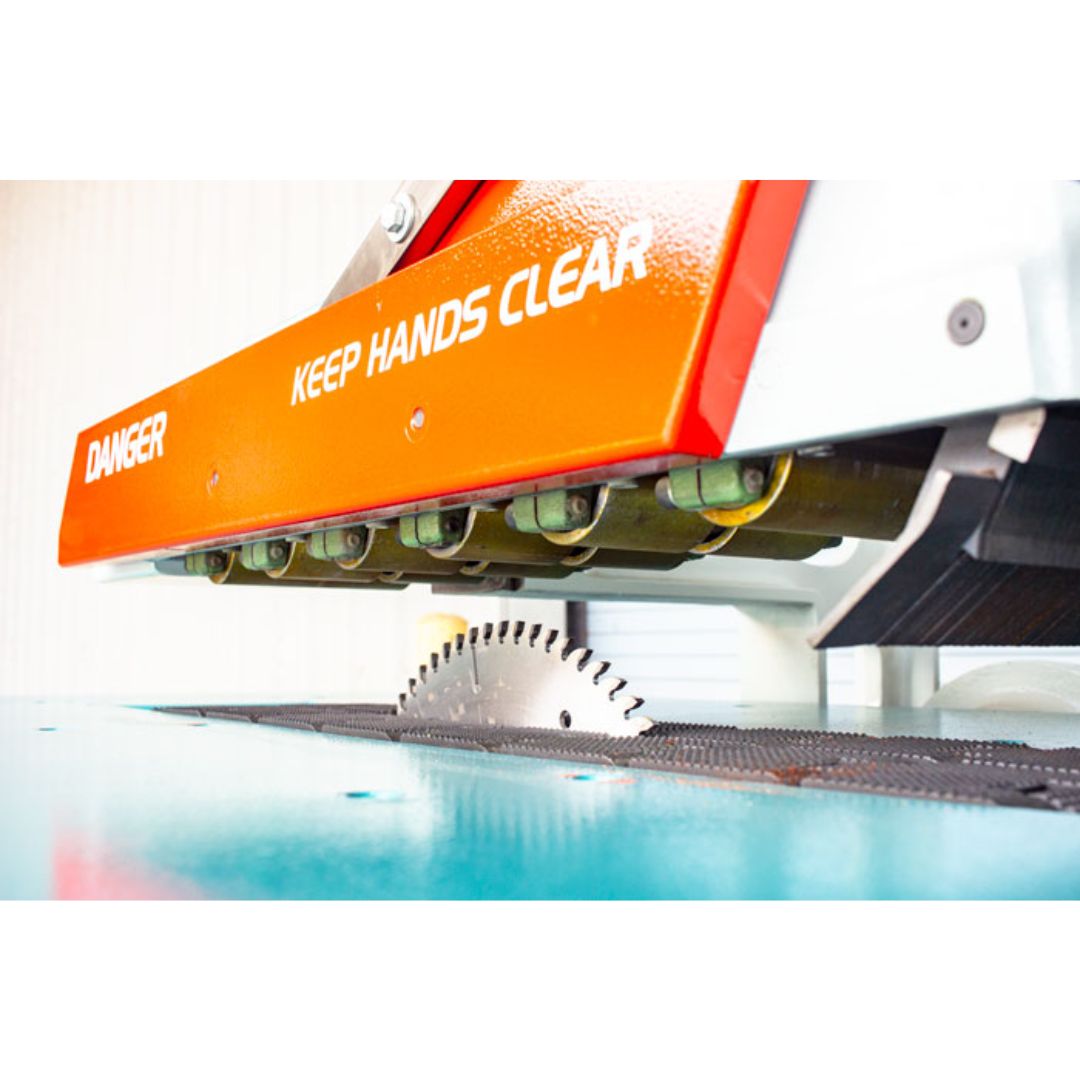

• 6 full hold down rollers
• Variable feed speeds from 50-120 ft/min
• 8′ Guaranteed Glue Line
• Disc Brakes
• Micro adjust fence with handwheel

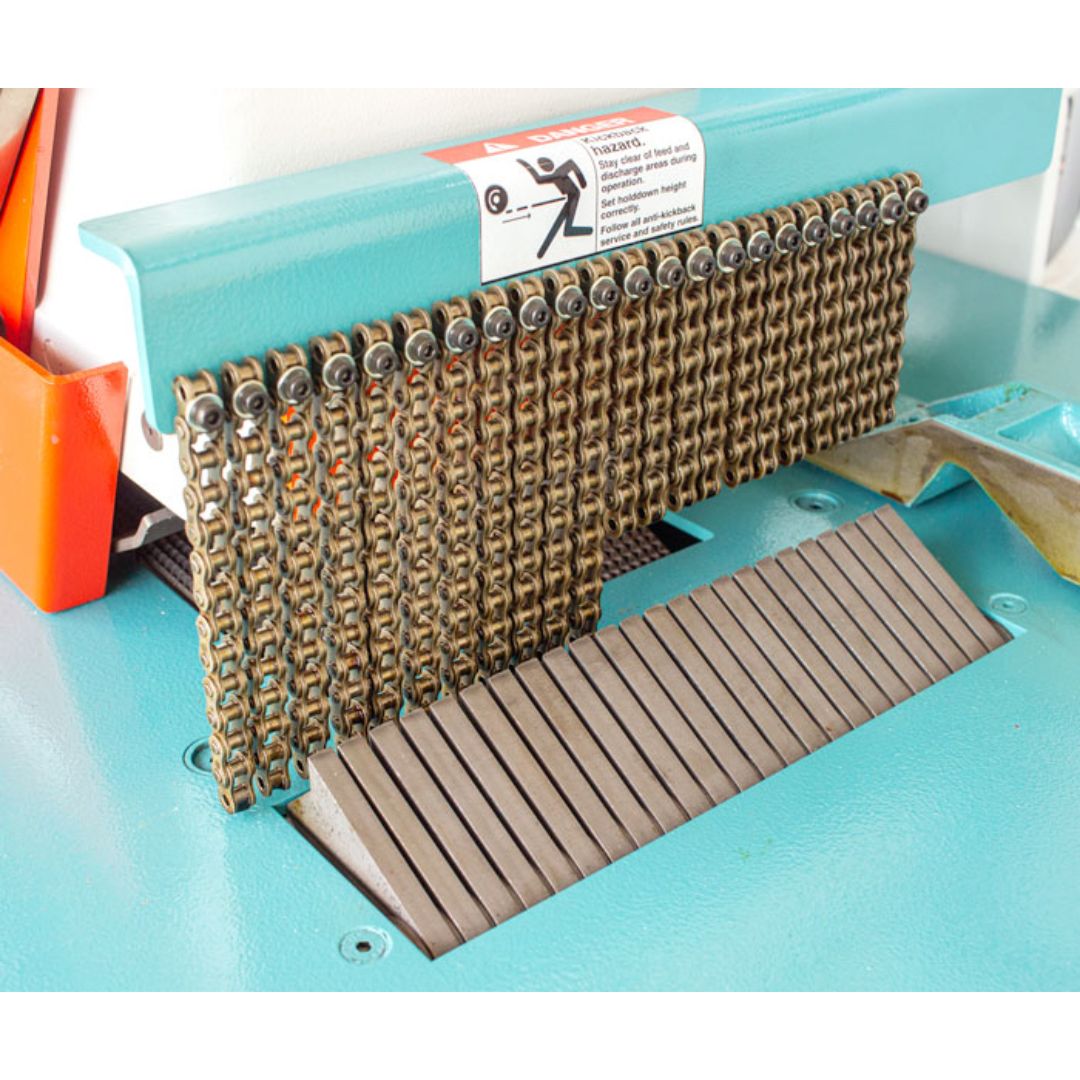

• Triple anti-kickback fingers
• 18″ wide ripping capacity
• Automatic Oiler with low-oil warning
• Wye-Delta soft start

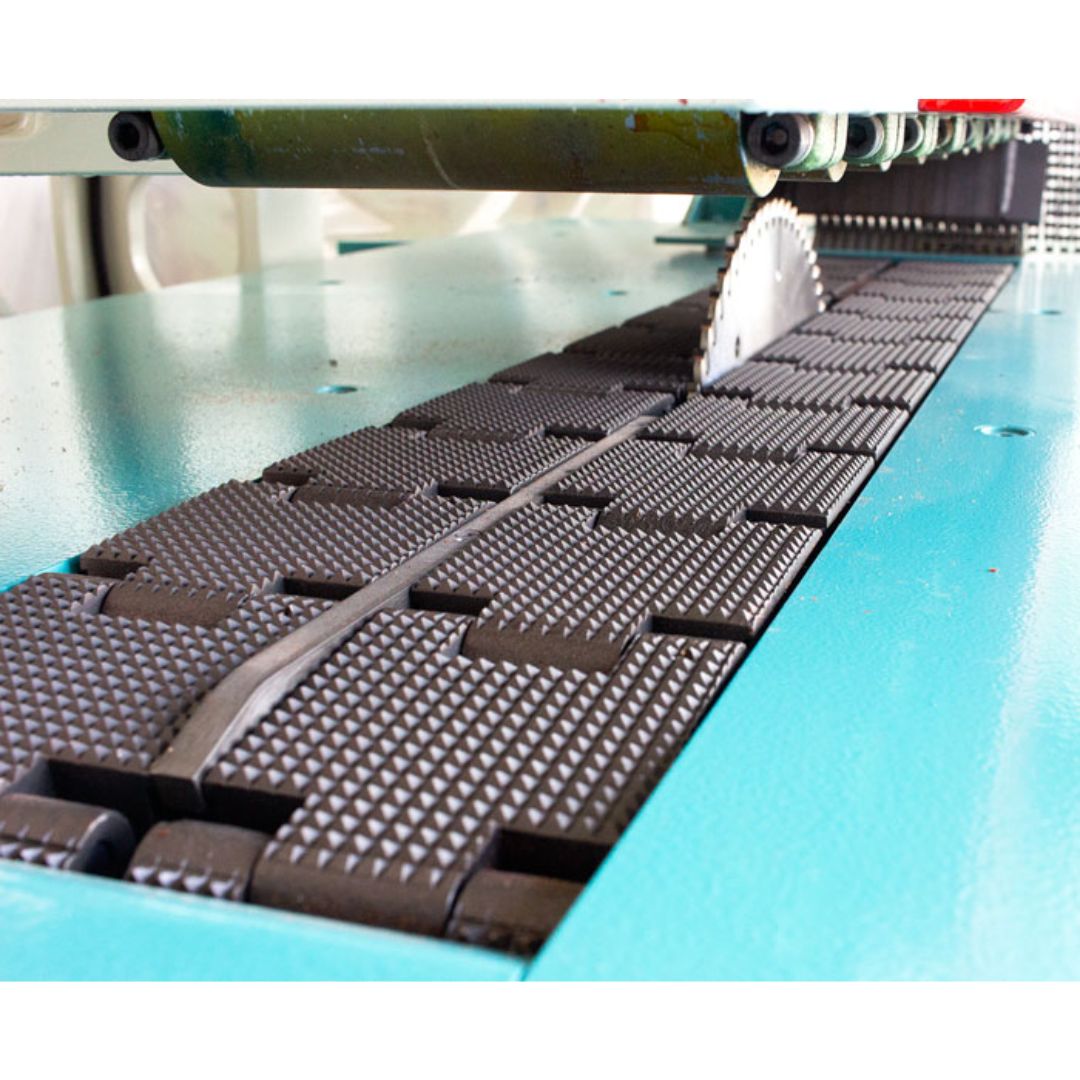

• Heat treated chain and race
• Amp meter

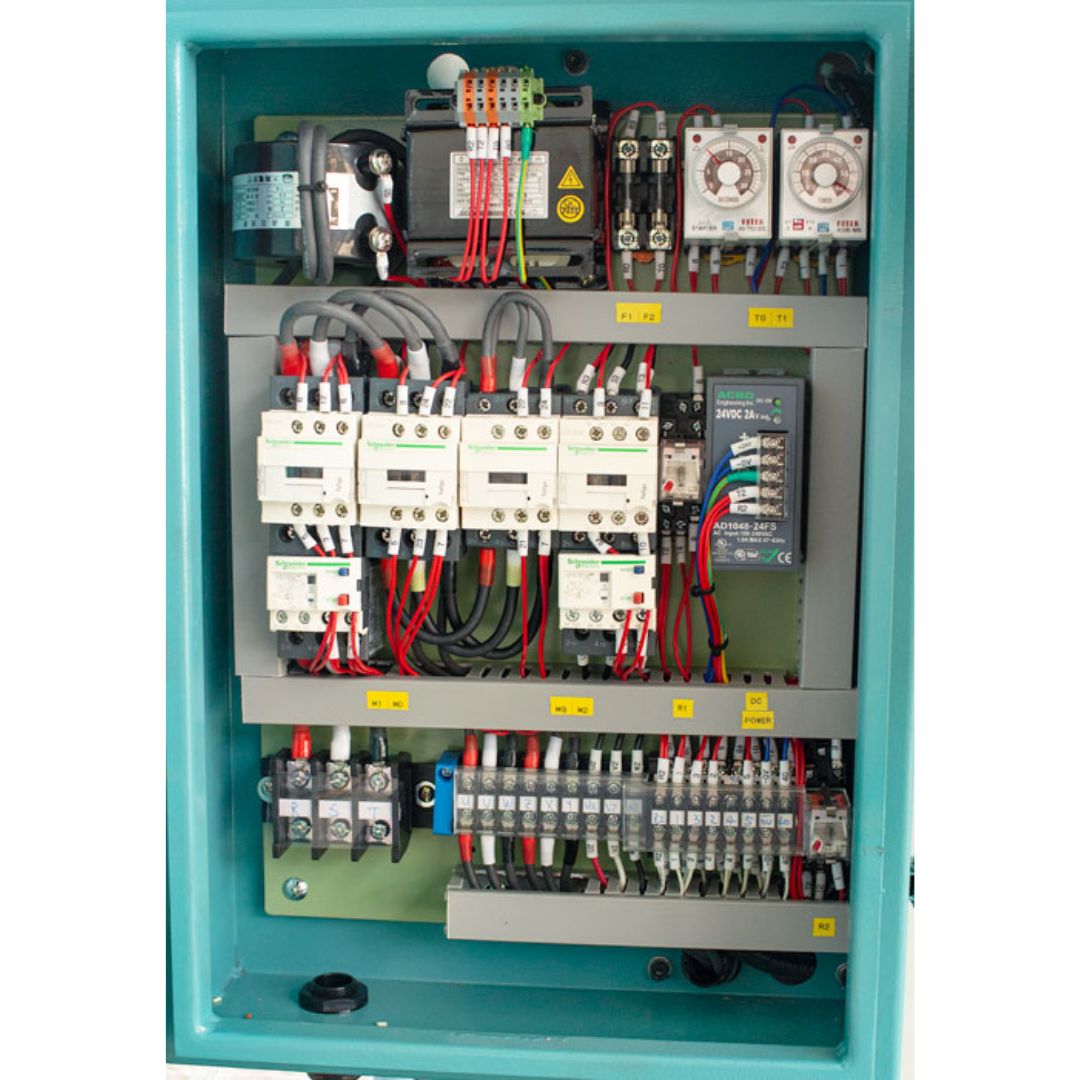

• Square D Electrical controls

Specifications:

Horsepower: 15HP

Voltage: 230V or 460V

Phase(s): 3PH

Blade Size: 14"

Main Motor: 15 HP

Feed Motor: 1.5 HP

Blade Speed: 3600

Feed Speed: 50 - 120

Max Rip Capacity: 18"

Working Height: 33.5"

Table Size: 45" x 61"

Dust Collection Requirement: 1000 CFM

Hold Down Rollers: 6

Chain Rail Length: 28"

Chain Pad Width: 7"

Guaranteed Glue Line Length: 8'

Set of Anti-Kickback Fingers: 3

Disc Brakes: Yes

Oiler System: Auto w/ warning

AMPS (230V/460V): 45A / 23A

Max Thickness Capacity: 3"

Weight: 3200 lbs
